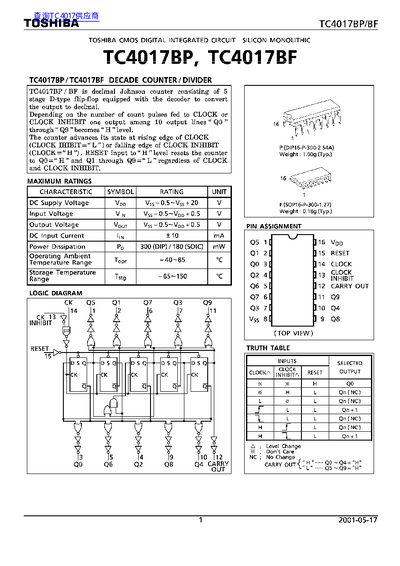

This document is a technical datasheet for the Toshiba TC4017BP and TC4017BF integrated circuits. These devices are decimal Johnson counters consisting of five-stage D-type flip-flops equipped with a decoder to convert outputs to decimal values (Q0 through Q9). The counter advances its state on the rising edge of the CLOCK input or the falling edge of the CLOCK INHIBIT input.
| Product Type | Decimal Johnson Counter / Divider |
|---|---|
| Internal Structure | 5-stage D-type flip-flop with decoder |
The device is a decimal Johnson counter consisting of five stage D-type flip-flops equipped with a decoder.
One output among ten output lines labeled Q0 through Q9 becomes high depending on the count pulses fed to the clock inputs.
