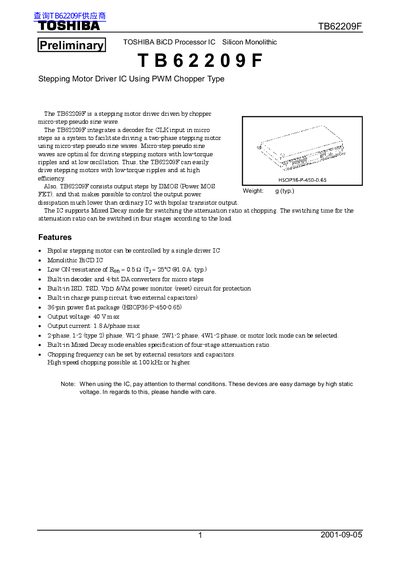

TB62209F is a stepping motor driver IC from Toshiba. This driver uses PWM chopper type micro-step pseudo sine wave to drive two-phase stepping motor. It has the advantages of low torque ripple and low harmonic.
The TB62209F is a monolithic BiCD processor IC designed to drive two-phase stepping motors with low-torque ripples and high efficiency. It integrates a decoder for CLK input in micro-steps, facilitating the use of micro-step pseudo sine waves which are optimal for driving stepping motors at low oscillation.
| Package Type | HSOP36-P-450-0.65 |
|---|---|
| Output Voltage | 40 V max |
| Output Current | 1.8 A/phase max |
| ON-resistance (Ron) | 0.5 Q typ. |
| Chopping Frequency | 100 kHz or higher |
The IC is designed to facilitate driving a two-phase stepping motor using micro-step pseudo sine waves.
The device has an output voltage of 40 V max and an output current of 1.8 A/phase max.
High-speed chopping is possible at 100 kHz or higher when using external resistors and capacitors.
