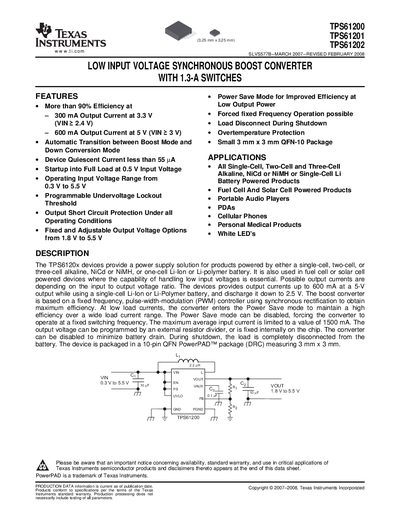

TEXAS INSTRUMENTS -TPS61200 TPS61201 TPS61202 LOW INPUT VOLTAGE SYNCHRONOUS BOOST CONVERTER WITH 1.3-A SWITCHES handbook
The TPS6120x family provides low‑input voltage synchronous boost conversion with up to 1.3 A switch capability. It supports single‑cell, two‑cell, or three‑cell battery sources as well as fuel‑cell or solar‑cell power, offering programmable or fixed output voltages from 1.8 V to 5.5 V.
The document includes functional block diagrams, pin assignments, electrical characteristics, typical performance graphs, thermal pad information and absolute maximum ratings. It is intended for designers needing efficient power‑management solutions in portable audio, PDAs, cellular phones and medical devices.
Texas Instruments TPS61200 specifications
| Input voltage range | 0.3 V – 5.5 V |
|---|---|
| Output voltage range | 1.8 V – 5.5 V |
| Maximum output current (5 V version) | 600 mA |
| Switch current limit | 1.2 A – 1.5 A |
| Efficiency at low load | > 90 % |
| Package | 10‑pin QFN (3 mm × 3 mm) PowerPAD™ |
