The SN74AHCT32-Q1 is a quadruple 2-input positive-OR gate. This device performs the Boolean function Y = A • B or Y = A + B in positive logic.
The SN74AHCT32‑Q1 is a CMOS quadruple 2‑input positive‑OR gate. It implements the Boolean function Y = A + B in positive logic and accepts TTL‑level input voltages. The device is qualified for automotive applications and meets ESD protection requirements.

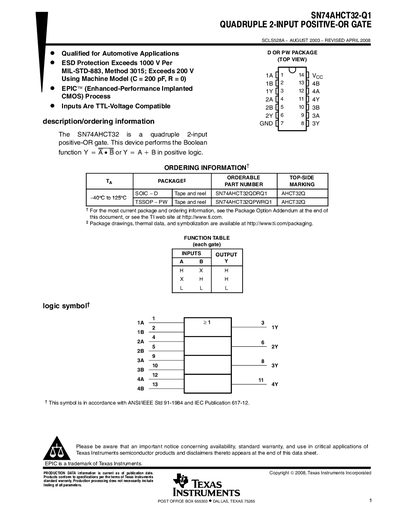

The datasheet provides absolute‑maximum ratings, recommended operating conditions, electrical characteristics, mechanical drawings, and packaging information. Ordering options include active SOIC‑D and TSSOP‑PW packages, with detailed land‑pattern and stencil recommendations. An important notice at the end covers warranty, liability, and usage restrictions.
| Operating temperature range | -40 °C to 125 °C |
|---|
It operates from –40 °C to 125 °C (free‑air temperature).
