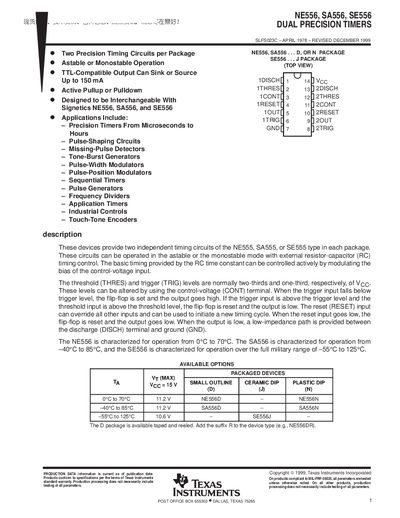

Texas Instruments NE556/SA556/SE556 Dual Precision Timers Datasheet
The NE556, SA556 and SE556 are dual precision timer ICs that contain two independent timing circuits similar to the classic NE555 design. Each timer can be configured for astable (free‑running) or monostable (one‑shot) operation using external resistor‑capacitor networks, and the timing can be adjusted via the control‑voltage input.
The document lists the electrical characteristics, absolute maximum ratings, recommended operating conditions, package options, and application information for the three device variants, along with safety notices and warranty statements from Texas Instruments.
Texas Instruments SA556 specifications
| Input voltage (CONT, RESET, THRES, TRIG) | 0 V – VCC |
|---|---|
| Operating temperature range (SA556) | -40 °C – 85 °C |
| Operating temperature range (SE556) | -55 °C – 125 °C |
Source: Texas Instruments NE556/SA556/SE556 Dual Precision Timers Datasheet
All Texas Instruments SA556 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can the output sink or source current?
Yes, the TTL‑compatible output can sink or source up to 150 mA.
From: Texas Instruments NE556/SA556/SE556 Dual Precision Timers Datasheet
