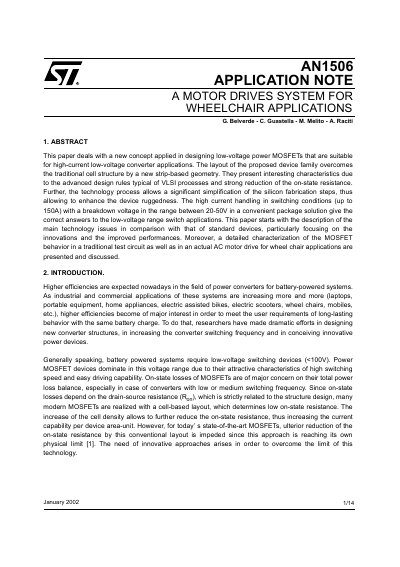

AN1506 Application Note: Motor Drive System for Wheelchair Applications
The document presents an application note (AN1506) focusing on a new concept for designing low-voltage power MOSFETs suitable for high-current, low-voltage converter applications. It introduces a strip-based geometry that overcomes the limitations of traditional cell structures by offering simplified fabrication steps and enhanced device ruggedness.
The note specifically analyzes the STB80NF55 MOSFET as a candidate for an AC motor drive system used in wheelchairs. It details the static and dynamic behavior of the device, including on-state resistance, switching losses, and thermal characteristics within this specific application context.
STMicroelectronics STB80NF55 specifications
| Drain‑source Voltage (VDS) | 55 V |
|---|---|
| Continuous Drain Current (ID) at 25 °C | 80 A |
| Pulsed Drain Current (IDM) | 320 A |
| Total Power Dissipation (PD) | 300 W |
| Maximum Junction Temperature (Tj) | 175 °C |
Source: ST STB80NF55-06 STB80NF55-06-1 STP80NF55-06 STP80NF55-06FP handbook
All STMicroelectronics STB80NF55 documents by type
