Key facts
- Brand
- STMicroelectronics
- Model
- STEVAL-SPBT2ATV2
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-07
Start here

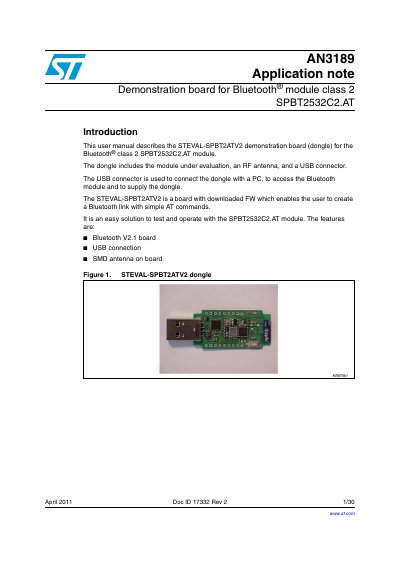

ST AN3189 Application note handbook
This user manual describes the STEVAL-SPBT2ATV2 demonstration board (dongle) for the Bluetooth class 2 SPBT2532C2.AT module. The dongle includes the module under evaluation, an RF antenna, and a USB connector used to connect with a PC, access the module, and supply power. It features downloaded firmware that enables the user to create a Bluetooth link with simple AT commands.
Read onlineSTMicroelectronics STEVAL-SPBT2ATV2 specifications
| Bluetooth Version | Bluetooth V2.1 |
|---|---|
| Connection Type | USB connection |
| Antenna Type | SMD antenna on board |
| Operating Temperature | -40 to +85 °C |
All STMicroelectronics STEVAL-SPBT2ATV2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What module is the STEVAL-SPBT2ATV2 dongle designed to evaluate?
The dongle is a design tool to evaluate the SPBT2532C2.AT module in a quick and simple way.
From: STMicroelectronics STEVAL-SPBT2ATV2 USB Dongle Data Brief
How is the dongle connected to a PC and what does the connection do?
The USB connector connects the dongle to a PC to access the Bluetooth module and to supply the dongle.
From: STMicroelectronics STEVAL-SPBT2ATV2 USB Dongle Data Brief
What is the purpose of the STEVAL-SPBT2ATV2 board?
It is a pure demonstration tool only for evaluation purpose and not a product in itself.
How is the dongle powered?
The dongle is powered via the USB connector which is also used to connect it with a PC.
