Start here

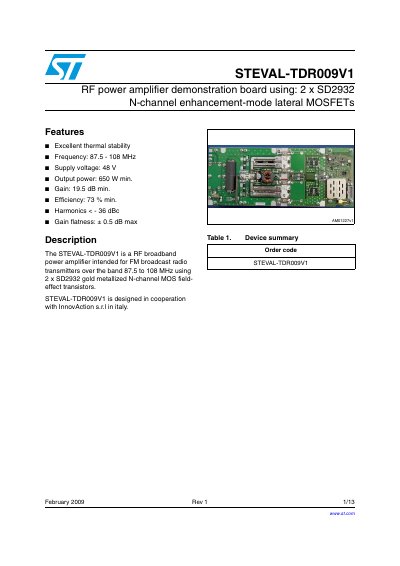

ST STEVAL-TDR009V1 RF power amplifier demonstration board using: 2 x SD2932 N-channel enhancement-mode lateral MOSFETs handbook
The STEVAL-TDROO9V1 is a broadband RF power amplifier demonstration board designed for FM broadcast radio transmitters operating in the 87.5 to 108 MHz frequency range. It utilizes two SD2932 N-channel enhancement-mode lateral MOSFETs to achieve a minimum output power of 650 W and a gain of 19.5 dB. The board is designed in cooperation with InnovAction s.r.l. in Italy.
Key features include excellent thermal stability, harmonics suppression below -36 dBc, and a minimum efficiency of 73%. The board incorporates input and output directional couplers for forward and reflected power measurements, as well as latching protection with a manual reset pin and an ultrafast alarm for over-reflected power conditions.
STMicroelectronics SD2932 specifications
| Frequency range | 87.5 - 108 MHz |
|---|---|
| Supply voltage | 48 V |
| Output power | 650 W min. |
| Gain | 19.5 dB min. |
| Efficiency | 73 % min. |
| Harmonics | < -36 dBc |
| Gain flatness | + 0.5 dB max |
| Operating base plate temperature | 0 to +70 °C |
All STMicroelectronics SD2932 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What MOSFETs are used in this board?
The board uses 2 x SD2932 N-channel enhancement-mode lateral MOSFETs.
What frequency range does this RF power amplifier demonstration board support?
The board operates over the frequency range of 87.5 to 108 MHz.
What is the typical output power of the SD2932 amplifier?
The typical output power is 300 W.
From: STMicroelectronics AN1229 Application Note for SD2932 RF MOSFET
What is the operating frequency range for this amplifier?
The amplifier operates over the frequency range 88 - 108 MHz.
From: STMicroelectronics AN1229 Application Note for SD2932 RF MOSFET
