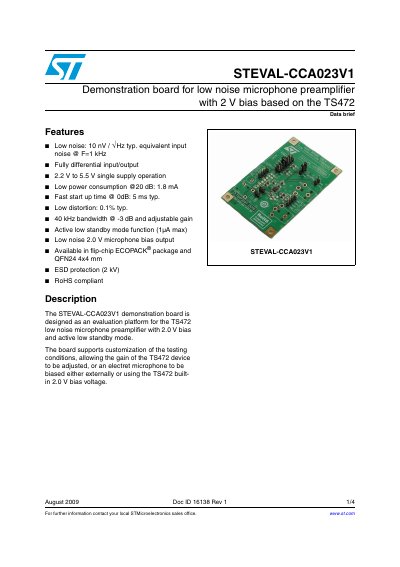

STMicroelectronics STEVAL-CCA023V1 Demonstration Board Data Sheet
The STEVAL-CCA023V1 is a demonstration board designed as an evaluation platform for the TS472 low noise microphone preamplifier. It supports customization of testing conditions, allowing users to adjust the gain or bias an electret microphone externally or using the built-in 2.0 V bias voltage.
The board features fully differential input/output and operates on a single supply from 2.2 V to 5.5 V. Key specifications include low noise (10 nV/√Hz typ.), low power consumption (1.8 mA @ 20 dB), and an active low standby mode function.
STMicroelectronics STEVAL-CCA023V1 specifications
| Equivalent input noise | 10 nV/VHz typ. at F = 1 kHz |
|---|---|
| Supply voltage range | 2.2 to 5.5 V single supply |
| Power consumption (20 dB) | 1.8 mA |
| Start-up time (0 dB) | 5 ms typ. |
| Distortion | 0.1% typ. |
| Bandwidth | 40 kHz at -3 dB |
| Microphone bias output | 2.0 V |
Source: ST AN2240 handbook
All STMicroelectronics STEVAL-CCA023V1 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the STEVAL-CCA023V1 demonstration board designed for?
It serves as an evaluation platform for the TS472 low noise microphone preamplifier with a 2.0 V bias and active low standby mode.
From: STMicroelectronics STEVAL-CCA023V1 Demonstration Board Data Sheet
What is the typical equivalent input noise of the board?
The board has a low noise level of 10 nV /VHz typ. equivalent input noise at F=1 kHz.
From: STMicroelectronics STEVAL-CCA023V1 Demonstration Board Data Sheet
What is the purpose of the STEVAL-CCA023V1 demonstration board?
The board is designed to evaluate the TS472 microphone preamplifier and helps users customize conditions for evaluation testing.
From: ST AN2240 handbook
What power supply voltage range does the demonstration board support?
The board supports a power supply voltage ranging from 2.2 V to 5.5 V.
From: ST AN2240 handbook
