Start here

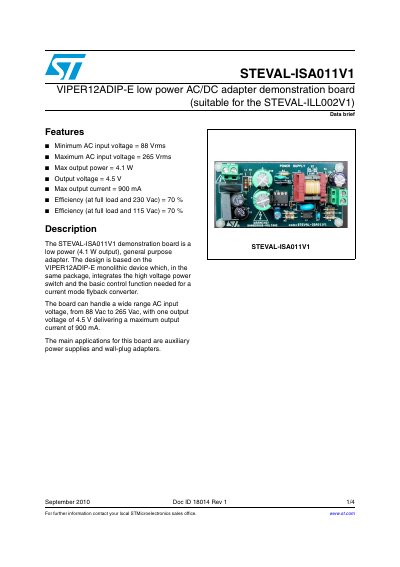

STMicroelectronics STEVAL-ISA011V1 Demonstration Board Data Brief
The STEVAL-ISA011V1 is a general purpose, low power (4.1 W output) AC/DC adapter demonstration board designed for auxiliary power supplies and wall-plug adapters. The design utilizes the VIPER12ADIP-E monolithic device to integrate high voltage power switching and control functions in a current mode flyback converter configuration.
Read onlineSTMicroelectronics STEVAL-ISA011V1 specifications
| Output Power | 4.1W |
|---|---|
| Input Voltage Range | 88VAC to 265VAC |
| Switching Frequency | 60kHz |
| Operating Mode | Discontinuous Conduction Mode (DCM) |
Source: STMicroelectronics AN2272 VIPer12A-based Low Power AC/DC Adapter Application Note
All STMicroelectronics STEVAL-ISA011V1 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum output power of the STEVAL-ISA011V1 demonstration board?
The board has a maximum output power of 4.1 W.
From: STMicroelectronics STEVAL-ISA011V1 Demonstration Board Data Brief
What is the output voltage and maximum output current of the board?
The board provides an output voltage of 4.5 V with a maximum output current of 900 mA.
From: STMicroelectronics STEVAL-ISA011V1 Demonstration Board Data Brief
What is the output power of the adapter described in this note?
The adapter has an output power of 4.1W.
From: STMicroelectronics AN2272 VIPer12A-based Low Power AC/DC Adapter Application Note
What is the input voltage range supported by the adapter?
The adapter handles a wide range of input voltages from 88VAC to 265VAC.
From: STMicroelectronics AN2272 VIPer12A-based Low Power AC/DC Adapter Application Note
