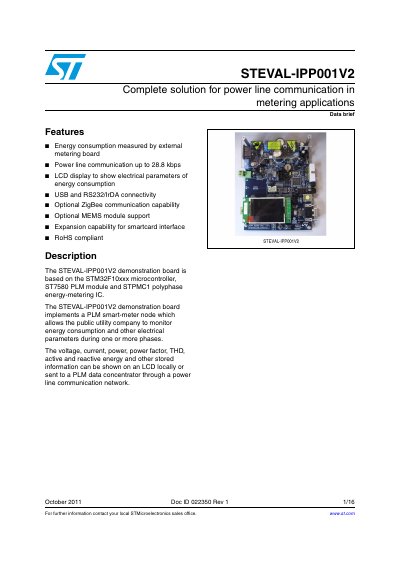

STMicroelectronics STEVAL-IPP001V2 Data Brief
Product Leaflet 16 pages · 503 KB · EN
The STEVAL-IPP001V2 is a demonstration board designed to implement a PLM smart-meter node. It allows public utility companies to monitor energy consumption and electrical parameters across one or more phases. The device features an LCD display for local viewing of active and reactive energy, power factor, THD, voltage, current, and other stored information.
Read onlineSTMicroelectronics STEVAL-IPP001V2 specifications
| Microcontroller | STM32F103VE |
|---|---|
| PLM Module | ST7580 |
| Energy Metering IC | STPMC1 |
| LCD Display | MB542B-01 320x240 color TFT |
| PLC Speed | up to 28.8 kbps |
All STMicroelectronics STEVAL-IPP001V2 documents by type
Product Leaflet 1
Application Note 1
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum power line communication speed?
The board supports power line communication up to 28.8 kbps.
Does the STEVAL-IPP001V2 support ZigBee?
Yes, it has optional ZigBee communication capability.
What is the purpose of this demonstration board?
The board can be used as a guideline to design a typical energy-meter board for smart metering applications.
What is the maximum data rate for power line communication on this board?
The board supports power line communication up to a speed of 28.8 kbps.
