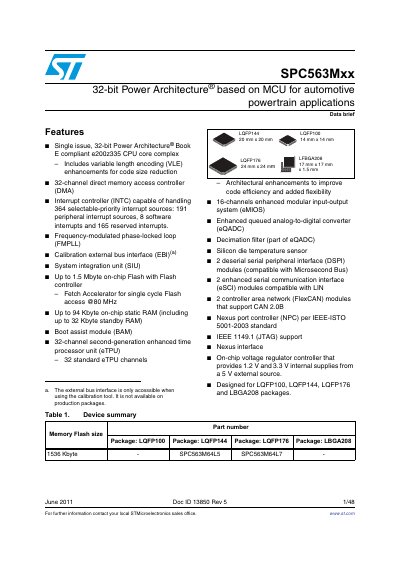

STMicroelectronics SPC563Mxx 32-bit MCU Data Brief
The SPC563Mxx is a family of system-on-chip devices built on Power Architecture technology, designed specifically for automotive powertrain applications. The microcontrollers feature a single-issue, 32-bit e200z335 CPU core with Variable Length Encoding (VLE) enhancements and support for digital signal processing (DSP). The architecture includes a high-performance 90 nm CMOS process to reduce cost per feature while improving performance.
Key integrated technologies include an enhanced time processor unit (eTPU), an enhanced queued analog-to-digital converter (eQADC), and support for LIN and CAN 2.0B communication protocols. The device offers up to 1.5 Mbyte of on-chip Flash memory and up to 94 Kbyte of on-chip static RAM, along with a 32-channel DMA controller and a 364-source interrupt controller.
STMicroelectronics SPC563Mxx specifications
| Processor core | 32-bit e200z335 with SPE and FPU support |
|---|---|
| Flash memory size | Up to 1.5 Mbyte |
| Static RAM size | Up to 94 Kbyte |
| DMA channels | 32 |
| Interrupt sources | 364 selectable-priority |
| Communication interfaces | LIN, CAN 2.0B |
| Packages | LQFP100, LQFP144, LQFP176, LBGA208 |
