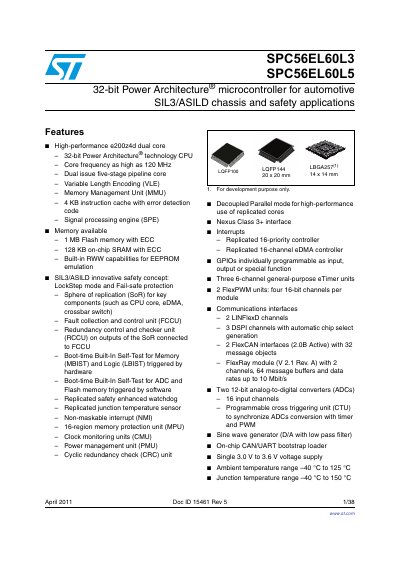

ST SPC56EL60L3 SPC56EL60L5 handbook
The document describes the SPC56EL60 series of system-on-chip devices built on Power Architecture technology, specifically targeting Electric Power Steering and other high Safety Integrity Level (SIL) applications. These microcontrollers feature a dual-core e200z4d CPU capable of up to 120 MHz operation.
Read onlineSTMicroelectronics SPC56EL60 specifications
| Core frequency | 0-120 MHz (+2% FM) |
|---|---|
| Flash memory size | 1 MB, ECC, RWW |
| SRAM size | 128 KB, ECC |
| ADC resolution and channels | 2x 12-bit ADC, 16 channels per ADC |
All STMicroelectronics SPC56EL60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum core frequency of the SPC56EL60 microcontroller?
The core frequency can be as high as 120 MHz.
What is the ambient temperature range for the SPC56EL60L3 and SPC56EL60L5?
The ambient temperature range is from -40 °C to 125 °C.
What is the goal of this application note?
The goal is to show how users can implement properly the safety initialization and self tests to allow detecting latent faults and managing them.
From: STMicroelectronics AN3324 SPC56EL60 Power-On Self-Test Application Note
When should RGM and FCCU be configured?
They must be configured before all monitors or detectors are initialized.
From: STMicroelectronics AN3324 SPC56EL60 Power-On Self-Test Application Note
