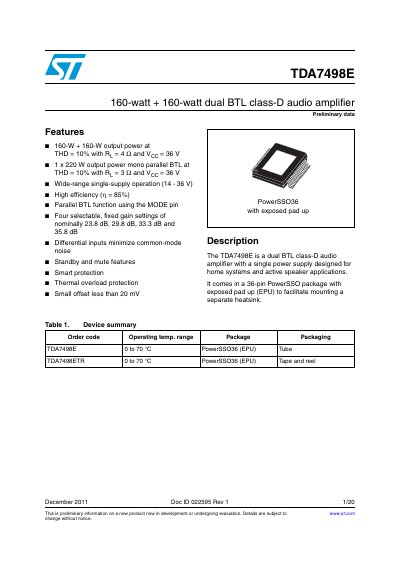

ST TDA7498E 160-watt + 160-watt dual BTL class-D audio amplifier handbook
The TDA7498E is a preliminary product designed as a dual bridge-tied load (BTL) class-D audio amplifier intended for home systems and active speaker applications. It operates from a single power supply in the range of 14 V to 36 V and features a PowerSSO36 package with an exposed pad up (EPU) to facilitate heatsink mounting.
The device provides selectable fixed gain settings via the GAIN pin and includes smart protection mechanisms such as thermal overload, overcurrent, and undervoltage protection. It supports both stereo operation and mono parallel BTL mode using the MODE pin, offering high efficiency of approximately 85%.
STMicroelectronics TDA7498E specifications
| Output power (stereo) | 160 W + 160 W |
|---|---|
| Supply voltage range | 14 - 36 V |
| Efficiency | 85% |
| Gain settings | 23.8 dB, 29.8 dB, 33.3 dB, 35.8 dB |
| Package type | PowerSSO36 (EPU) |
Source: ST TDA7498E 160-watt + 160-watt dual BTL class-D audio amplifier handbook
All STMicroelectronics TDA7498E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
How do I select the gain setting?
Gain is selected by applying a voltage to the GAIN pin; specific voltages correspond to fixed gains of 23.8 dB, 29.8 dB, 33.3 dB, and 35.8 dB.
From: ST TDA7498E 160-watt + 160-watt dual BTL class-D audio amplifier handbook
What are the protection features?
The device includes smart protection with thermal overload, overcurrent, undervoltage, and mute/standby functions.
From: ST TDA7498E 160-watt + 160-watt dual BTL class-D audio amplifier handbook
What is the output power of the TDA7498E in stereo configuration?
The device is able to deliver 160 W +160 W in stereo configuration with Voc = 36 V and a 4 Ω load.
From: STMicroelectronics AN4015 TDA7498E Dual-BTL Class-D Audio Amplifier Application Note
What package does the TDA7498E use?
The device is housed in a PSSO36 package.
From: STMicroelectronics AN4015 TDA7498E Dual-BTL Class-D Audio Amplifier Application Note
