ST STEVAL-ICB003V1 Smart touchpanel interface based on the STMPE1208S STLED316S STM8S handbook

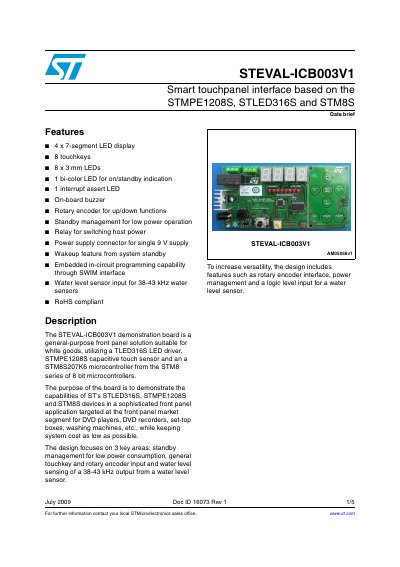

The STEVAL-ICB03V1 is a general-purpose front panel solution designed by STMicroelectronics. It integrates an STMPE1208S capacitive touch sensor, an STLED316S LED driver, and an STM8S microcontroller to demonstrate sophisticated front panel applications for devices like DVD players and washing machines.
Read onlineSTMicroelectronics STMPE1208S specifications
| GPIO Bits | 12-bit |
|---|---|
| Sensor Channels | 12-channel |
| Interrupt Types | General and Touch |
Source: STMicroelectronics AN2843 STMPE1208S Application Note
All STMicroelectronics STMPE1208S documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the STEVAL-ICB03V1 demonstration board designed for?
It is a general-purpose front panel solution suitable for white goods such as DVD players, DVD recorders, set-top boxes, and washing machines.
From: ST STEVAL-ICB003V1 Smart touchpanel interface based on the STMPE1208S STLED316S STM8S handbook
What power supply voltage is required for the board?
The board requires a single 9 V supply.
From: ST STEVAL-ICB003V1 Smart touchpanel interface based on the STMPE1208S STLED316S STM8S handbook
What is the STMPE1208S?
It is a 12-bit GPIO device with additional 12-channel capacitive sensors.
How does the STMPE1208S detect touch?
It detects finger contact through the additional capacitance introduced to the sensor.
