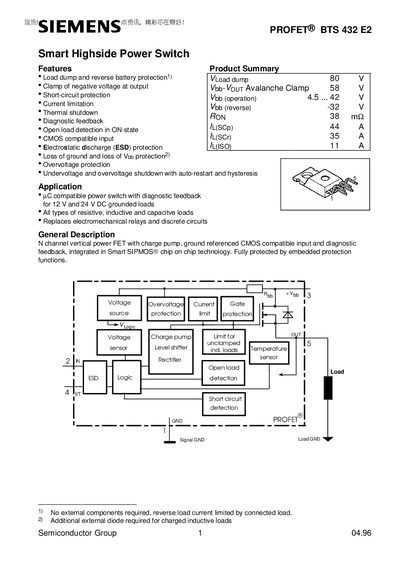

Siemens BTS 432 E2 Datasheet
The PROFET® BTS 432 E2 is a smart high‑side power switch designed for 12 V and 24 V DC grounded loads. It integrates a vertical N‑channel power FET with charge‑pump technology, CMOS‑compatible input, and extensive diagnostic feedback, allowing it to replace electromechanical relays in resistive, inductive, and capacitive applications.
Key specifications include a supply voltage rating of 63 V, load‑dump protection up to 66.5 V, on‑state resistance as low as 30 mΩ, and a power dissipation capability of 125 W. The device also features multiple protection functions such as short‑circuit, over‑voltage, under‑voltage, reverse‑battery, and ESD protection, making it suitable for a wide range of industrial and automotive power‑switching tasks.
Siemens BTS 432 E2 specifications
| Supply voltage (Vob) | 63 V |
|---|---|
| Load dump protection (Vob) | 66.5 V |
| Power dissipation (DC) | 125 W |
| Operating temperature range | -40 °C to +150 °C |
| Short‑circuit current limit | 44 A |
Source: Siemens BTS 432 E2 Datasheet
All Siemens BTS 432 E2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the BTS 432 E2?
The device can tolerate a supply voltage up to 63 V (Vob).
What package does the BTS 432 E2 use?
It is supplied in a standard TO‑220AB/5 package.
What is the maximum supply voltage for the BTS 432 E2?
The device can tolerate a supply voltage up to 63 V.
From: Siemens BTS 432 E2 Smart Highside Power Switch Datasheet
What is the power dissipation rating of the device?
The device can dissipate up to 125 W in DC operation.
From: Siemens BTS 432 E2 Smart Highside Power Switch Datasheet
