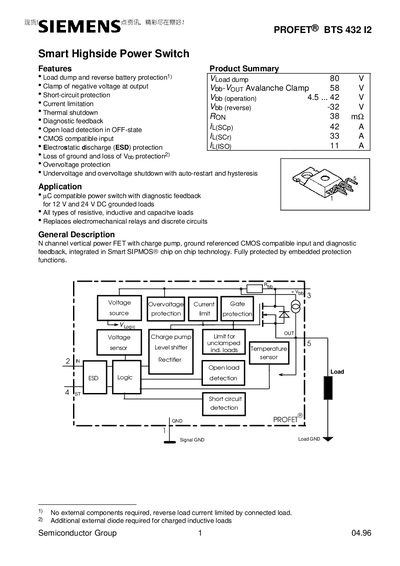

Siemens BTS 432 I2 Datasheet
The PROFET® BTS 432 I2 is a smart high‑side power switch designed for 12 V and 24 V DC grounded loads. It integrates a vertical N‑channel power FET with a charge‑pump and CMOS‑compatible input, offering built‑in protection functions such as load‑dump, reverse‑battery, short‑circuit, over‑voltage, under‑voltage, and ESD protection.
The document lists detailed electrical characteristics, maximum ratings, pin assignments, and package information. Key parameters include supply voltage limits, on‑state resistance, thermal shutdown thresholds, and inductive load switch‑off energy dissipation, enabling designers to select and implement the device in a variety of resistive, inductive, and capacitive load applications.
Siemens BTS 432 I2 specifications
| Supply voltage (overvoltage protection) | 63 V |
|---|---|
| Power dissipation (DC) | 125 W |
| Operating temperature range | -40 … 150 °C |
| Input voltage (DC) | -0.5 … +6 V |
| ESD capability (Human Body Model) | 2.0 kV |
Source: Siemens BTS 432 I2 Datasheet
