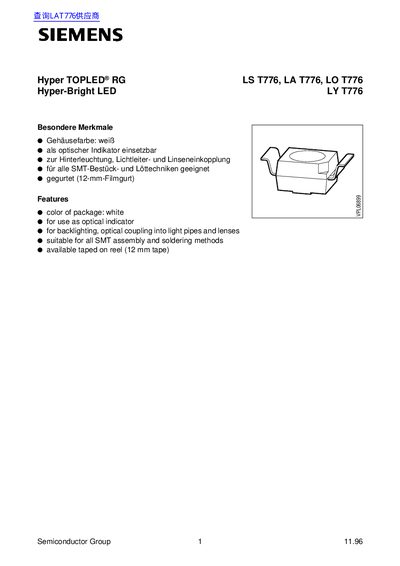

Hyper TOPLED® RG Hyper-Bright LED LS T776, LA T776, LO T776, LY T776 is a green light-emitting diode with high brightness, low voltage and low current, suitable for backlighting, optical fiber and lens coupling.
The Siemens LS T776 series includes the LS, LA, LO and LY variants, offered in colors such as super‑red, amber, orange and yellow. These surface‑mount LEDs are designed for backlighting, optical coupling into light pipes and lenses, and are suitable for all SMT assembly and soldering methods. They are supplied on 12 mm tape reels.
The datasheet provides detailed electrical and optical parameters, including operating temperature range, forward voltage, luminous intensity, wavelength, viewing angle and permissible pulse handling capability. It also lists maximum ratings and package dimensions for each variant. This manual is written in German.
