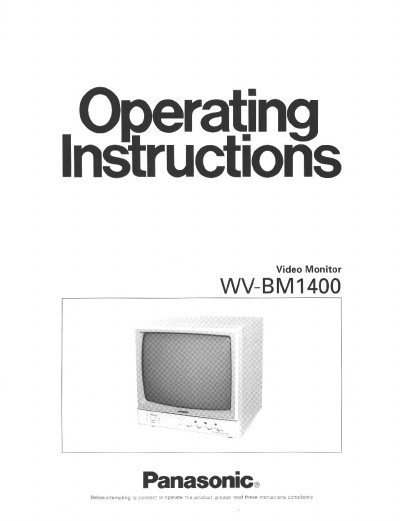

The Panasonic WV-BM1400 is a desktop closed-circuit video monitor designed for surveillance and studio applications. It features a 12-11/16-inch diagonal screen with a horizontal resolution of 1000 lines at the center and includes rimband implosion protection on the picture tube.
The document details the major operating controls, including power, scan size selection, and various adjustment knobs for brightness, contrast, focus, and hold functions. It also covers system connections for single or multiple monitors using coaxial cables and explains how to configure internal or external synchronization.
| Screen Size | 12-11/16" actual diagonal viewing size |
|---|---|
| Horizontal Resolution | 1000 lines at center |
| Input Power | 100 - 240V AC 50/60Hz |
| Operating Temperature | -10°C - +50°C |
A 75-ohm coaxial cable such as RG-59, RG-6/U, or RG-11/U should be used.
Yes, it can be rack mounted with optional rack angle brackets.
