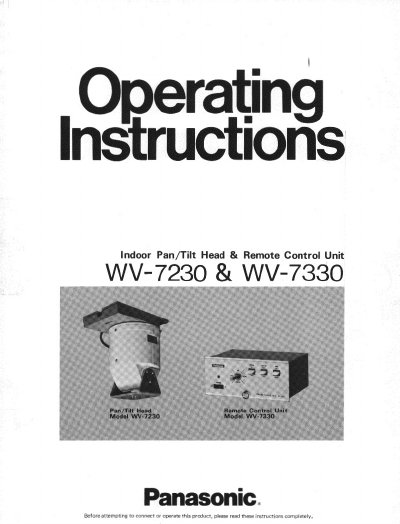

This manual covers the indoor Pan/Tilt Head (WV-7230) and the Remote Control Unit (WV-7330). The WV-7230 allows remote control of camera panning and tilting, with a total pan range of 340° and a tilt range of 90°. It can be ceiling mounted or bracket mounted to any flat surface.
The WV-7330 Remote Control Unit manages power for a low voltage camera (24V AC), the WV-7230 Pan/Tilt Head, and a motorized zoom lens (24V DC). It features joystick controls for panning and tilting, and three 3-position center-return switches for zooming, focusing, and iris control. The unit can also be mounted in an optional 19" rackmount frame.
| Pan range | 340° |
|---|---|
| Tilt range | 90° |
| Panning speed | 7°/sec. |
| Tilting speed | 4°/sec. |
| Operating temperature | -10°C~+50°C |
| Power input (WV-7330) | 120V AC 60Hz |
| Power input (WV-7230) | 24V AC 60Hz |
| Camera voltage | 24V AC |
No, the unit is designed for indoor use only.
The unit should not be used when humidity is above 90%.
No, the Remote Control Unit can control only one Pan/Tilt Head.
