Key facts
- Brand
- Panasonic
- Model
- KX-TA824
- Category
- Telephone
- Industry
- Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-06-01
Start here

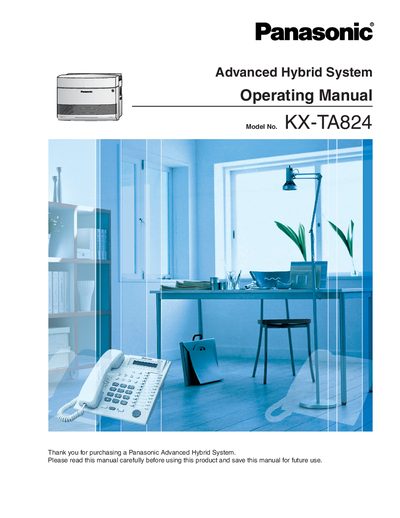

Panasonic KX-TA824 Advanced Hybrid System Operating Manual
This manual covers the features of the Panasonic Advanced Hybrid System, including built‑in voice messaging, DISA, and support for proprietary and wireless telephones. It explains how to set up the system, connect telephone lines, and use functions such as voice mail integration and direct inward system access.
Safety information, FCC requirements, and troubleshooting steps are included. The document also provides product identification details, service instructions, and guidelines for proper handling, grounding, and environmental conditions.
Panasonic KX-TA824 specifications
| Ringer Equivalence Number (REN) | 0.4 |
|---|---|
| Required Network Interface Jack | RJ11 |
| Facility Interface Code | 02LS2 |
| Service Order Code | 9.0F |
Source: Panasonic KX-TA824 Advanced Hybrid System Operating Manual
All Panasonic KX-TA824 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What should I do if the unit emits smoke or an abnormal smell?
Unplug the unit from the AC outlet immediately and contact an authorized Panasonic factory service center.
From: Panasonic KX-TA824 Advanced Hybrid System Operating Manual
How can I test the outside (CO) lines for call problems?
Disconnect the PBX from all outside lines, connect known working single‑line telephones, and make a call to verify the line.
From: Panasonic KX-TA824 Advanced Hybrid System Operating Manual
How long should I charge the battery before first use?
Charge the battery for about 7 hours before using the handset for the first time.
From: Panasonic KX-TA308/KX-TA624/KX-TA824 Wireless Phone User Manual
What does the “No Service” error mean?
It indicates the handset is out of range of the base unit; move closer to the base unit.
From: Panasonic KX-TA308/KX-TA624/KX-TA824 Wireless Phone User Manual
How many outside (CO) lines can the KX‑TA824 support?
The system can support between three and eight outside (CO) lines.
What is the Ringer Equivalence Number (REN) for this product?
The REN for the KX‑TA824 is 0.4.
