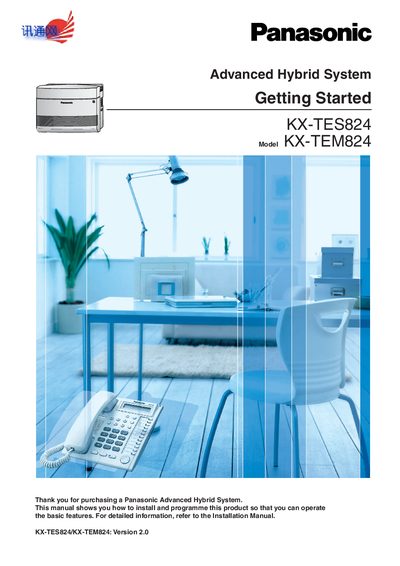

Panasonic KX-TES824/KX-TEM824 User Manual
This manual provides step‑by‑step instructions for installing and programming the Panasonic KX‑TES824/KX‑TEM824 Advanced Hybrid System. It includes safety guidelines, system component descriptions, and wiring information needed to set up the PBX for 3‑8 (or 6‑8) outside CO lines and up to 24 extensions.
Additional sections cover optional service cards, wall‑mounting procedures, regulatory disposal information, and how to access the electronic documentation on the supplied CD‑ROM. The guide is intended for qualified installers and service personnel.
Panasonic KX-TEM824 specifications
| Outside (CO) Lines (KX‑TES824) | 3 to 8 |
|---|---|
| Extensions (KX‑TES824) | 8 to 24 |
| Outside (CO) Lines (KX‑TEM824) | 6 to 8 |
| Extensions (KX‑TEM824) | 16 to 24 |
All Panasonic KX-TEM824 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What safety precautions should be followed when using the telephone equipment?
Read and understand all instructions, unplug before cleaning, keep the unit away from water, heat sources, and ensure proper ventilation.
How do I replace the fuse in the unit?
Open the fuse compartment with a screwdriver and replace the fuse and fuse cover.
How many outside (CO) lines can the KX‑TES824 support?
The KX‑TES824 supports between 3 and 8 outside (CO) lines.
