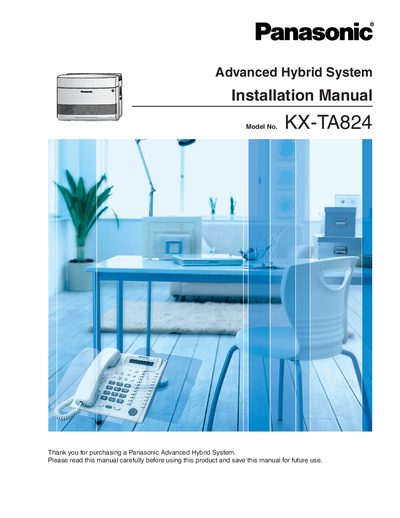

This manual describes the components, installation, and operation of the Panasonic Advanced Hybrid System KX-TA824.
This Installation Manual provides step‑by‑step instructions for installing the Panasonic KX‑TA824 Advanced Hybrid System, including unpacking, mounting, connecting outside (CO) lines, extensions, doorphones, and optional service cards. Safety precautions, power requirements, and FCC compliance information are also detailed.
The guide also describes the KX‑TA Maintenance Console software, system specifications, troubleshooting procedures, and how to configure system capacity and features. Appendices include wiring templates, service center listings, and an index for quick reference.
| Power Input | 100‑240 V AC, 1.5‑0.75 A, 50/60 Hz |
|---|---|
| Maximum Power Failure Tolerance | 300 ms |
| Memory Backup Duration | 7 years |
| Ring Frequency | 20 Hz/25 Hz (selectable) |
| Operating Temperature Range | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions (W×H×D) | 368 mm × 284 mm × 102 mm |
| Weight (fully expanded) | Approx. 3.5 kg (7.7 lb) |
| Ringer Equivalence Number (REN) | 0.4 |
| Required Network Interface Jack | RJ11 |
The system can support between three and eight outside (CO) lines.
The REN for the KX‑TA824 is 0.4.
A standard RJ11 jack is required.
