Key facts
- Brand
- Panasonic
- Model
- HPX500E
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-03
Start here

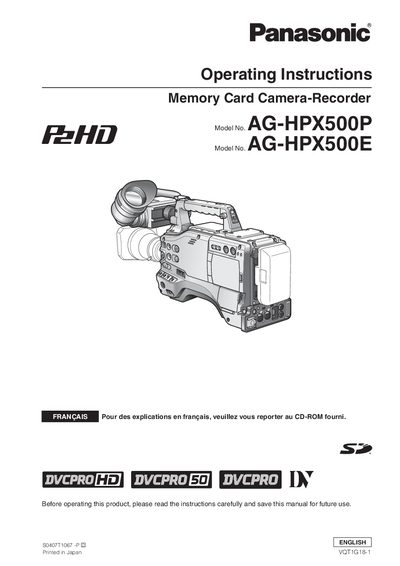

Panasonic AG-HPX500P/HPX500E Manual(1)
This manual begins with important safety cautions, including warnings about electric shock, fire hazards, and proper ventilation. It also outlines battery handling, recycling requirements, and FCC compliance information.
The guide then details the camera’s core features such as the 2/3‑inch interchangeable lens system, 14‑bit DSP processing, four P2 card slots, multiple HD/SD recording formats, variable frame‑rate options, and extensive menu operations. Sections on connecting external devices, maintenance, inspections, and technical specifications complete the documentation.
Panasonic HPX500E specifications
| Recording format | DVCPRO HD/DVCPRO50/DVCPRO DV selectable |
|---|---|
| Audio recording | PCM digital 48 kHz/16‑bits, 4 CH |
| Recording time (HD) | Approx. 8 minutes per P2 card |
| Recording media | P2 Card (4 GB, 8 GB, 16 GB) × 4 slots |
| Video system sampling frequency | Y: 74.25 MHz, Pb/Pr: 37.125 MHz |
| Video compression rate | 1/6.7 |
| Video bit rate | 100 Mbps |
| Audio input (mic) | XLR × 2 (front 1, front 2) |
| Video output (SDI) | BNC × 1, 0.8 V p‑p, 75 Ω |
Source: Panasonic AG-HPX500P/AG-HPX500E Memory Card Camera Recorder Operating Instructions
All Panasonic HPX500E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many P2 card slots does the camera have?
The unit provides four P2 card slots for extended HD recording.
How many P2 card slots does the recorder have?
The recorder provides four P2 card slots for continuous recording.
From: Panasonic AG-HPX500P/AG-HPX500E Memory Card Camera Recorder Operating Instructions
Can the recorder be powered by an AC power supply?
Yes, the unit can be operated with an external AC power supply.
From: Panasonic AG-HPX500P/AG-HPX500E Memory Card Camera Recorder Operating Instructions
