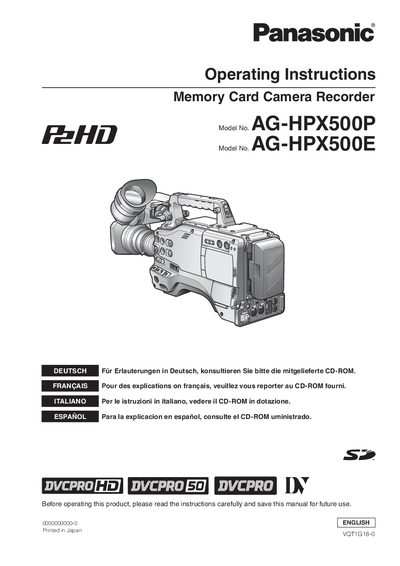

Panasonic AG-HPX500P/AG-HPX500E Memory Card Camera Recorder Operating Instructions

This manual introduces the operations of Memory Card Camera Recorder AG-HPX500P/E.

Brand: Panasonic
Category: Other
Document type: User Manual
Language: English
Pages: 140
File format: PDF
File size: 18.5 MB
Published: 13 March, 2012
Updated: 30 September, 2023
Models: AG-HPX500P, HPX500E
MD5 checksum: D7D5F395E421846BD39E9576217903F4
PDF: Panasonic AG-HPX500P/AG-HPX500E Memory Card Camera Recorder Operating Instructions PDF

About this manual

This manual covers the operation of the Panasonic AG-HPX500P/AG-HPX500E memory‑card camera recorder. It explains how to install batteries, connect power supplies, configure recording formats, and use the interchangeable 2/3‑inch lens system.

Safety precautions, battery handling, external connections (USB 2.0, IEEE‑1394, SDI, XLR audio), and detailed specifications are included to help users achieve reliable HD/SD recording and playback.

What's inside

Precautions for Use
Parts and their Functions
Recording and Playback
Adjustments and Settings
Camera Unit Features
Recording and Playback Features
Connecting to External Devices
Maintenance and Inspections
Specifications

Specifications

Recording format	DVCPRO HD/DVCPRO50/DVCPRO DV selectable
Audio recording	PCM digital 48 kHz/16‑bits, 4 CH
Recording time (HD)	Approx. 8 minutes per P2 card
Recording media	P2 Card (4 GB, 8 GB, 16 GB) × 4 slots
Video system sampling frequency	Y: 74.25 MHz, Pb/Pr: 37.125 MHz
Video compression rate	1/6.7
Video bit rate	100 Mbps
Audio input (mic)	XLR × 2 (front 1, front 2)
Video output (SDI)	BNC × 1, 0.8 V p‑p, 75 Ω

Frequently asked questions

How many P2 card slots does the recorder have?

The recorder provides four P2 card slots for continuous recording.

Can the recorder be powered by an AC power supply?

Yes, the unit can be operated with an external AC power supply.

Download PDF (18.5 MB)
