G6S PCB Relay is a surface mounted DPDT relay from Panasonic. It features long terminals, space-saving inside-L terminal, high dielectric strength, high impulse withstand voltages, low power consumption, bifurcated crossbar contact, fully sealed construction, high reliability, IRS application, high sealability, ultra-miniature, through-hole terminal and EN60950/EN41003 supplementary insulation-certified type.

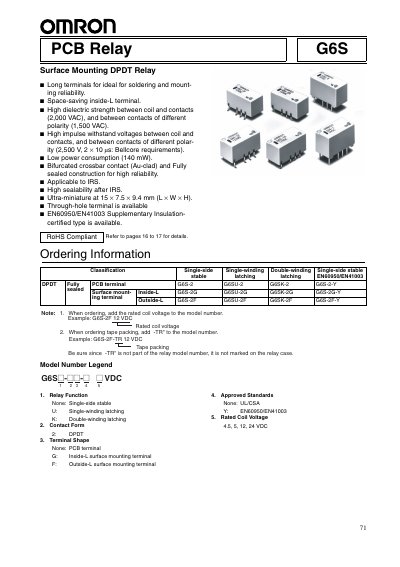

The Omron G6S is an ultra-miniature PCB relay designed for surface mounting applications. It features long terminals for soldering reliability, a space-saving inside-L terminal option, and high dielectric strength between coil and contacts (2,000 VAC). The series includes single-side stable, single-winding latching, and double-winding latching types.
| Relay Function (Single-side Stable) | None: Single-side stable |
|---|---|
| Contact Form | DPDT |
| Dimensions (L x W x H) | 15 x 7.5 x 9.4 mm |
| Power Consumption (Single-side Stable) | Approx. 140 mW |
| Dielectric Strength (Coil to Contacts) | 2,000 VAC |
| Max. Switching Voltage (Resistive Load) | 250 VAC, 220 VDC |
| Endurance (Mechanical) | 100,000,000 operations min. |
The available rated coil voltages are 4.5 VDC, 5 VDC, 12 VDC, and 24 VDC.
The mechanical endurance allows for up to 36,000 operations per hour.
