G6S Surface mount relay is a 2-pole signal switching relay with side-mounted terminals. It has a long terminal shape, long-term connection reliability of the welding part is improved, and the internal L-shaped terminal shape can be used for high-density packaging.
The G6S series is a surface‑mount relay family from Omron offering single‑stable, one‑coil lock and two‑coil lock versions. It is designed for telecom, measurement, AV and other electronic equipment where a compact, high‑reliability switching element is required.

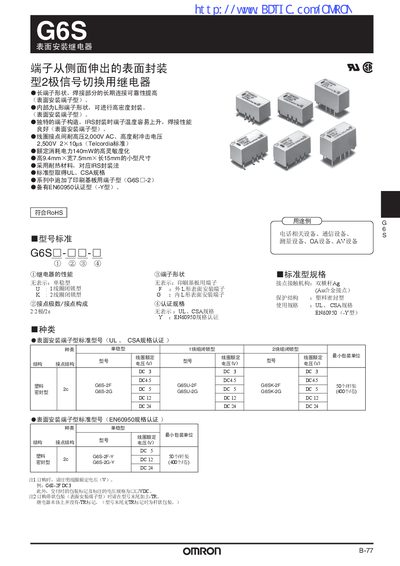

The document lists electrical characteristics (coil voltages, contact ratings, power consumption), mechanical dimensions, environmental limits, packaging options and recommended soldering conditions. It also includes test data for contact resistance, mechanical life and usage notes for reliable long‑term operation. This manual is written in Chinese.
