G6RL is a low-profile power relay with a height of 12.3mm and a 1-pole 10A switch capability. It features high insulation distance of 10mm and can withstand a voltage of 5kV between coil and contact. The relay is RoHS compliant and can operate in environments with temperatures up to 85℃. It is suitable for applications such as boilers and control equipment.

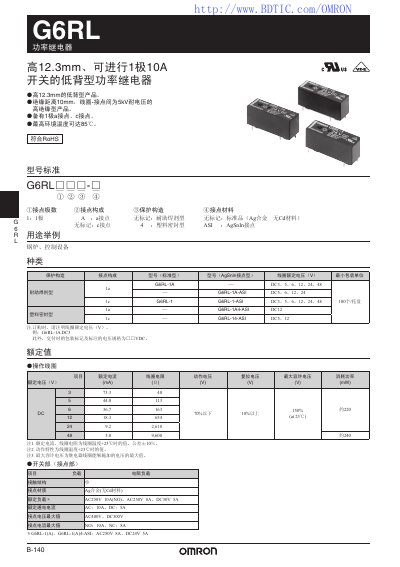

This leaflet describes the G6RL low‑profile power relay series, including its contact configurations, coil voltage options, and mechanical dimensions. It lists the rated load currents, contact materials, and environmental limits for safe operation.
The document also contains performance data such as contact resistance, operating and release times, insulation resistance, and durability test results, as well as certification information (UL, VDE, IEC) and usage cautions for industrial applications.
| Contact resistance | ≤ 100 mΩ |
|---|---|
| Operating time | ≤ 10 ms |
| Reset time | ≤ 5 ms |
| Insulation resistance | ≥ 1 000 MΩ |
| Rated load (AC) | 10 A (NO), 8 A (NC) |
| Operating temperature range | -40 °C to +80 °C |
| Weight | ≈ 7.88 g |
The contact resistance is specified as 100 mΩ or less.
The relay can operate from –40 °C up to +80 °C.
The NO contact is rated for 10 A and the NC contact for 8 A at AC250 V.
