The G6RL PCB Relay is a low-profile power relay from Panasonic with a maximum switching current of 10A. It is only 12.3mm high, has a maximum switching capacity of 2,500 VA (NO), an electrical strength of 5 kV, and a clearance and creepage distance of 10 mm. It is suitable for a variety of electrical appliances, such as boilers, PLCs, I/O ports, timers, and temperature controllers.
The G6RL series are low‑profile PCB power relays (12.3 mm height) designed for applications such as boilers, PLCs, I/O ports, timers, and temperature controllers. They offer a maximum switching capacity of 2,500 VA (NO) and a dielectric strength of 5 kV, with clearances and creepage distances of 10 mm.

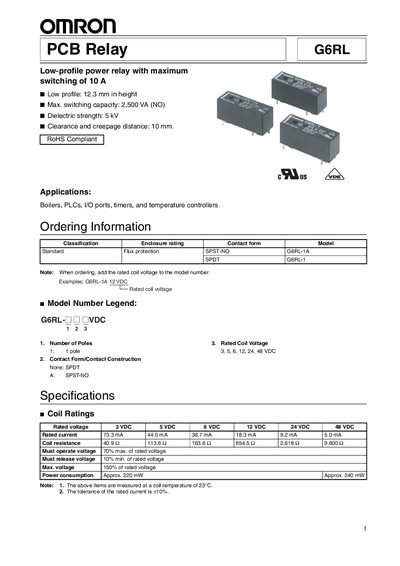

The handbook lists coil voltage options (3 VDC to 48 VDC), rated currents, contact ratings, mechanical dimensions, environmental limits, and compliance with standards such as UL 508 and VDE. It also includes ordering information, approved standards, and safety precautions.
| Maximum switching capacity (NO) | 2,500 VA |
|---|---|
| Dielectric strength | 5 kV |
| Clearance and creepage distance | 10 mm |
| Coil voltage ratings | 3 VDC – 48 VDC |
| Operating temperature range | -40 °C to 85 °C |
The G6RL relay can switch up to 2,500 VA in the normally‑open (NO) contact configuration.
Coil voltages are offered at 3 VDC, 5 VDC, 6 VDC, 12 VDC, 24 VDC, and 48 VDC.
The relays operate from –40 °C up to 85 °C.
Both clearance and creepage distances are 10 mm.
