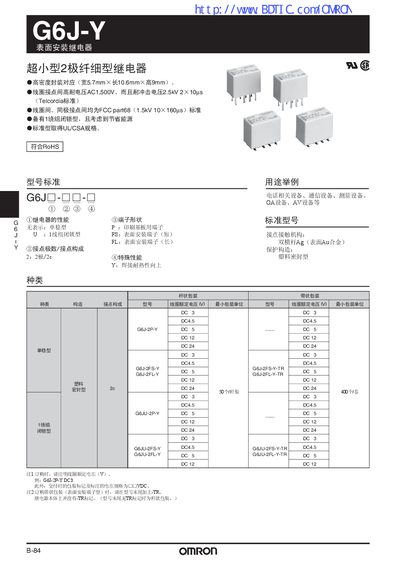

The document introduces different models and applications of G6J series relays, including G6J-Y, G6J-2FS-Y, G6J-2FL-Y, G6JU-2FS-Y, and G6JU-2FL-Y. These relays are suitable for telephone-related equipment, communication equipment, measurement equipment, OA equipment, and AV equipment, etc. They feature ultra-small slim design, high-density packaging, voltage resistance, and shock resistance.
The G6J‑Y series are ultra‑compact surface‑mount relays offered by Omron for a wide range of applications such as automation, communication and measurement. The handbook lists the electrical and mechanical characteristics of the main variants (G6J‑2P‑Y, G6J‑2FS‑Y, G6J‑2FL‑Y, G6JU‑2P‑Y, etc.) and includes regulatory compliance data.
Key data include rated AC/DC voltages, contact resistance, switching times, mechanical life, environmental limits and packaging details. Guidance on mounting, storage and handling is also provided to ensure reliable performance in printed‑circuit‑board assemblies. This manual is written in Japanese.
| Maximum switching time | ≤ 3 ms (typical 1.6 ms) |
|---|---|
| Weight | 1.0 g |
| Operating temperature range | -40 °C to +85 °C |
| Storage humidity range | 5 % to 95 % RH |
| Packaging – tape & reel | 800 parts per reel (2 rolls) |
They are supplied in tape‑and‑reel format with 800 parts per reel (2 rolls).
