Start here

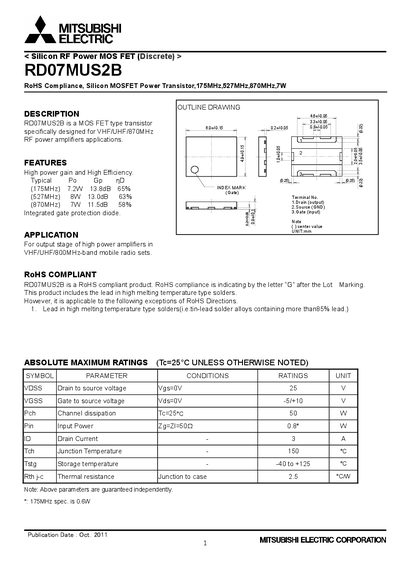

MITSUBISHI RD07MUS2B Manual
The RDO7MUS2B is a silicon RF power MOSFET designed for VHF/UHF/870 MHz RF power amplifier applications. It offers high power gain and efficiency across multiple frequency bands (175 MHz, 527 MHz, 870 MHz) with typical output powers up to 7 W.
The document provides detailed electrical characteristics, absolute maximum ratings, typical performance curves, RoHS compliance information and extensive safety precautions for designers integrating the device into high‑frequency power stages.
Mitsubishi RD07MUS2B specifications
| Drain current (I_D) | 3 A |
|---|---|
| Storage temperature range | -40 °C to +125 °C |
| Thermal resistance (junction‑to‑case) | 2.5 °C/W |
Source: MITSUBISHI RD07MUS2B Manual
All Mitsubishi RD07MUS2B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
How is RoHS compliance indicated for the RDO7MUS2B?
The product is RoHS compliant and this is indicated by the letter “G” after the lot number.
What are the typical output powers at 175 MHz and 527 MHz?
At 175 MHz the typical output power is 7 W with a gain of 13.8 dB; at 527 MHz the typical output power is 8 W with a gain of 13.0 dB.
What frequencies were tested for the amplifiers?
The amplifiers were measured at 380 MHz, 405 MHz, and 430 MHz.
Where can I find the equivalent circuit diagram for the amplifiers?
The equivalent circuit diagram is shown on page 5 of the document.
What frequency range is covered in the RF characteristics?
The measurements cover 135 MHz to 175 MHz.
From: MITSUBISHI ELECTRIC RD01MUS2 RD07MUS2B RF characteristics data at135 to 175MHz. (Vdd=7.2V) Manual
What supply voltage was used for the measurements?
The supply voltage was Vdd = 7.2 V.
From: MITSUBISHI ELECTRIC RD01MUS2 RD07MUS2B RF characteristics data at135 to 175MHz. (Vdd=7.2V) Manual
