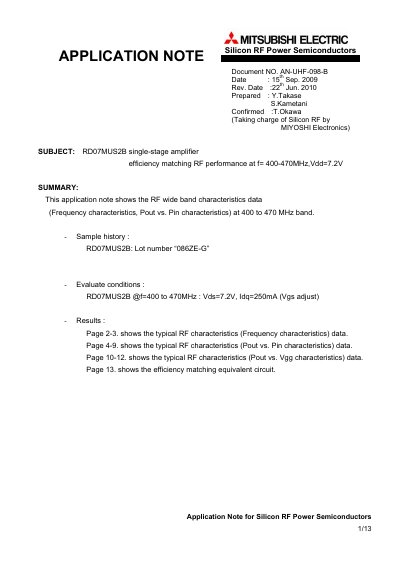

This is an application note about the RF wide band characteristics data (Frequency characteristics, Pout vs. Pin characteristics) at 400 to 470 MHz band of RD07MUS2B
This application note from Silicon RF presents the wide‑band RF characteristics of the RD07MUS2B single‑stage amplifier. It includes frequency response, output power versus input power, and efficiency data across the 400‑470 MHz band with a 7.2 V supply.
The document provides detailed tables and graphs for frequency characteristics, Pout‑vs‑Pin curves, Pout‑vs‑Vgg curves, and an equivalent circuit for efficiency matching. A parts list for the prototype board is also included.
| Supply voltage (Vdd) | 7.2 V |
|---|---|
| Quiescent drain current (Idq) | 250 mA |
| Frequency range | 400 MHz – 470 MHz |
| Maximum output power | 6.3 W (38 dBm) |
The amplifier is evaluated with a supply voltage of 7.2 V.
At 400 MHz the device delivers about 6.3 W (38 dBm) output power.
The quiescent drain current is specified as 250 mA.
The amplifier operates over the 400 MHz to 470 MHz band.
