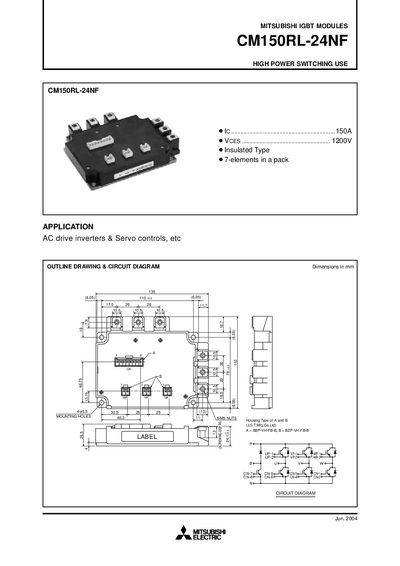

Mitsubishi CM150RL-24NF IGBT Module Datasheet
The Mitsubishi CM150RL-24NF IGBT module is designed for high‑power switching applications such as AC drive inverters and servo controls. It features an insulated 7‑element pack with a typical weight of 750 g.
The document provides absolute maximum ratings, electrical characteristics, performance curves, and reverse‑recovery data, including voltage, current, and thermal specifications for both the inverter and brake parts of the module.
Mitsubishi CM150RL-24NF specifications
| Collector‑emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑emitter voltage (VGES) | +20 V |
| Maximum collector current (Ic) | 150 A |
| Maximum collector dissipation | 890 W |
| Typical weight | 750 g |
All Mitsubishi CM150RL-24NF documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector‑emitter voltage rating?
The module can withstand up to 1200 V collector‑emitter voltage.
What is the maximum collector current the module can handle?
It is rated for a maximum collector current of 150 A.
What temperature ranges does the module support?
The junction temperature can operate from –40 °C up to +150 °C, and it can be stored from –40 °C to +125 °C.
What is the typical weight of the CM600HX-12A module?
The module weighs about 330 g.
What are the recommended torque values for mounting the main terminals?
Torque for the main terminals (M6 screw) should be 3.5 – 4.5 N·m, and for the mounting M5 screw 2.5 – 3.5 N·m.
