Start here

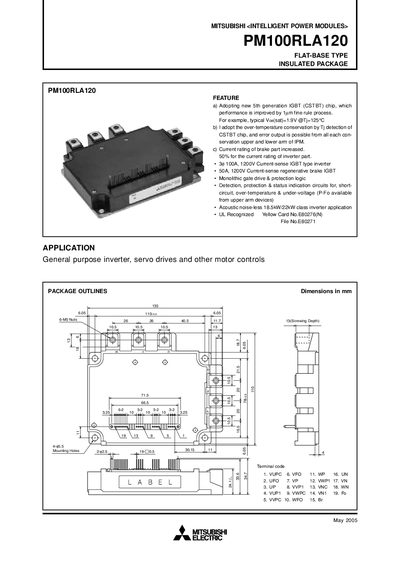

Mitsubishi PM100RLA120 User Manual
The PM100RLA120 is an intelligent power module with a flat‑base insulated package, featuring a 5th‑generation IGBT (CSTBT) chip, over‑temperature protection, and high current ratings for inverter and regenerative brake applications. It is intended for general purpose inverters, servo drives, and other motor control systems.
The manual includes maximum ratings, electrical and mechanical characteristics, recommended operating conditions, testing precautions, performance curves, and detailed wiring diagrams to ensure safe and reliable integration of the module.
Mitsubishi PM100RLA120 specifications
| Collector Dissipation (Inverter) | 781 W |
|---|---|
| Junction Temperature Range | -20 ~ +150 °C |
| Collector Current (Brake) | 50 A |
| Weight | 800 g |
Source: Mitsubishi Electric PM100RLA120 Intelligent Power Module Datasheet
All Mitsubishi PM100RLA120 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What applications is the PM100RLA120 module designed for?
This module is intended for use in general purpose inverters, servo drives, and other motor controls.
From: Mitsubishi Electric PM100RLA120 Intelligent Power Module Datasheet
What is the maximum junction temperature rating for the module?
The junction temperature must not exceed +150°C under specified conditions.
From: Mitsubishi Electric PM100RLA120 Intelligent Power Module Datasheet
What type of chip technology is used in the PM100RLA120?
It adopts a new 5th generation IGBT (CSTBT) chip with a 1µm fine rule process.
From: Mitsubishi PM100RLA120 Intelligent Power Module Datasheet
What is the typical saturation voltage at 125°C?
The typical Vce(sat) is 1.9V when the junction temperature is 125°C.
From: Mitsubishi PM100RLA120 Intelligent Power Module Datasheet
What is the junction temperature operating range?
The module can operate from –20 °C up to +150 °C junction temperature.
What is the collector current rating for the brake part?
The brake part is rated for a collector current of 50 A (continuous) and 100 A peak.
