Start here

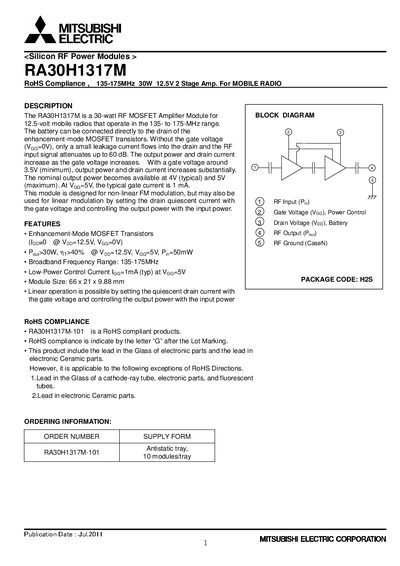

Mitsubishi RA30H1317M RF Power Amplifier Module Datasheet
The RA30H1317M is a 30‑watt RF MOSFET amplifier module designed for 12.5‑V mobile radios operating in the 135‑175 MHz band. It uses enhancement‑mode MOSFET transistors and can be driven directly from a battery, with output power controlled by gate voltage or input power.
The document lists maximum ratings, electrical characteristics, typical performance graphs, mechanical dimensions, and detailed recommendations for mounting, heat‑sink design, ESD protection, and safety. It also includes a block diagram, equivalent circuit, and RoHS compliance information.
Mitsubishi RA30H1317M specifications
| Frequency Range | 135 – 175 MHz |
|---|---|
| Output Power | 30 W (typical) |
| Drain Voltage (Vpp) | 12.5 V |
| Gate Voltage (Vea) | 0 – 5 V |
| Input Power (Pin) | 50 mW (typ) |
| Gate Current (Ieg) | 1 mA (typ) |
| Total Efficiency | 40 % (typ) |
| Package Size | 66 × 21 × 9.88 mm |
Source: Mitsubishi RA30H1317M RF Power Amplifier Module Datasheet
All Mitsubishi RA30H1317M documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What mounting torque is recommended for the screws?
M3 screws should be tightened to a torque of 4.0 to 6.0 kgf‑cm.
From: Mitsubishi RA30H1317M RF Power Amplifier Module Datasheet
How sensitive is the module to ESD?
The module is sensitive to ESD voltages down to 1000 V and requires appropriate precautions.
From: Mitsubishi RA30H1317M RF Power Amplifier Module Datasheet
What mounting torque is recommended for the screws?
M3 screws should be tightened to a torque of 4.0 to 6.0 kgf‑cm.
From: Mitsubishi Electric RA30H1317M1 RF Power Module Datasheet
How is RoHS compliance indicated on this module?
RoHS compliance is indicated by the letter “G” after the lot marking.
From: Mitsubishi Electric RA30H1317M1 RF Power Module Datasheet
