Start here

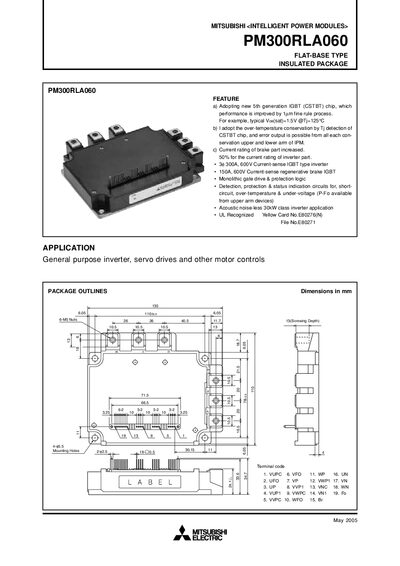

Mitsubishi PM300RLA060 Intelligent Power Module Datasheet
This datasheet describes the Mitsubishi PM300RLA060 flat‑base insulated‑package Intelligent Power Module. It outlines the module’s features such as a 5th‑generation IGBT (CSTBT) chip, over‑temperature protection, and high current ratings for inverter and brake parts. Application examples include general‑purpose inverters, servo drives and other motor‑control systems.
The document lists detailed electrical ratings (collector‑emitter voltage, current limits, supply voltage), thermal resistance values, mechanical dimensions and mounting torque, as well as precautions for testing and notes for stable and safe operation. Performance curves illustrate switching times, voltage‑current characteristics and transient thermal impedance for both inverter and brake sections.
Mitsubishi PM300RLA060 specifications
| Inverter Part Current Rating | 300 A at 600 V |
|---|---|
| Brake Part Current Rating | 150 A at 600 V |
| Supply Voltage (VCC) | 300 V |
| Maximum Collector Current (IC) | 300 A |
| Thermal Resistance (junction‑to‑case, typical) | 0.12 °C/W |
| Module Dimensions | 10.56 mm (flat‑base) |
Source: Mitsubishi PM300RLA060 Intelligent Power Module Datasheet
All Mitsubishi PM300RLA060 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector current for the inverter part?
The inverter part can handle up to 300 A at 600 V.
From: Mitsubishi PM300RLA060 Intelligent Power Module Datasheet
What supply voltage is recommended for the PM300RLA060?
The recommended supply voltage is 300 V.
From: Mitsubishi PM300RLA060 Intelligent Power Module Datasheet
What mounting torque should be used for the main terminal screw?
The recommended torque for the main terminal screw (M5) is between 2.5 Nm and 3.5 Nm.
From: Mitsubishi PM300RLA060 Intelligent Power Module Manual
What is the operating junction temperature range of the module?
The module can operate from –20 °C up to +150 °C junction temperature.
From: Mitsubishi PM300RLA060 Intelligent Power Module Manual
