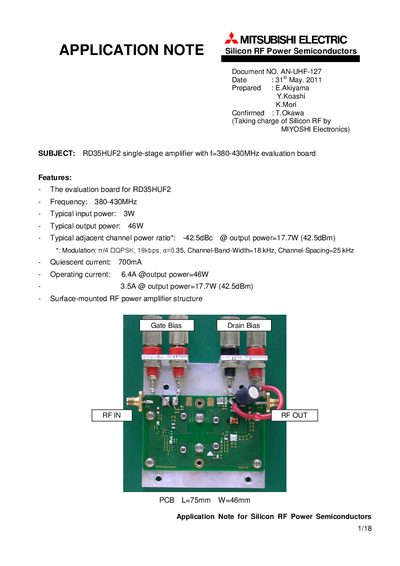

Mitsubishi Electric RD35HUF2 Application Note AN-UHF-127
This application note (AN‑UHF‑127) describes the RD35HUF2 single‑stage RF power amplifier evaluation board produced by Mitsubishi Electric. It provides the circuit schematic, PCB layout, component list, land‑pattern dimensions, thermal design guidelines, and measured RF characteristics.
Key sections include the equivalent circuitry, detailed PCB dimensions, a full component bill of materials, heat‑sink thermal calculations, and performance graphs such as frequency response, output power versus drain efficiency, and DC power‑supply requirements.
Mitsubishi RD35HUF2 specifications
| Frequency range | 380‑430 MHz |
|---|---|
| Typical input power | 3 W |
| Typical output power | 46 W |
| Adjacent channel power ratio | -42.5 dBc @ 17.7 W (42.5 dBm) |
| Modulation | 1/4 DQPSK, 18 kbps, a=0.35, BW=18 kHz, spacing=25 kHz |
| Quiescent current | 700 mA |
| Operating current (46 W output) | 6.4 A |
| Thermal resistance of heat sink (recommended) | < 1.2 °C/W |
