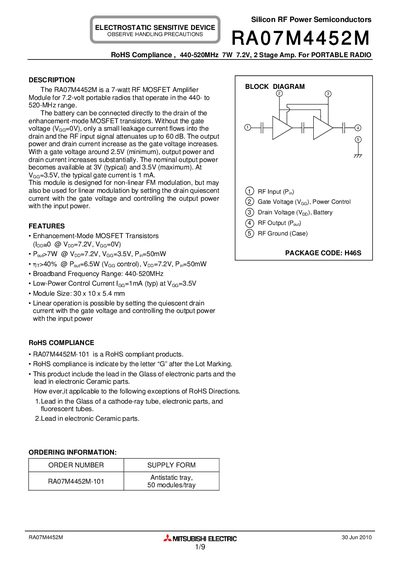

Mitsubishi Electric RA07M4452M Datasheet
The RA07M4452M is a 7‑watt RF MOSFET amplifier module designed for 7.2‑V portable radios operating in the 440‑520 MHz band. It uses enhancement‑mode MOSFET transistors and can be driven directly from a battery, with output power controlled by gate voltage or input RF power.
The module is supplied in an H46S package (30 × 10 × 5.4 mm) and includes handling precautions such as ESD sensitivity (down to 1000 V), RoHS compliance, and specific mounting and soldering guidelines to ensure reliability.
Mitsubishi RA07M4452M specifications
| Frequency Range | 440‑520 MHz |
|---|---|
| Gate Voltage (Vag) Rating | ≤ 3.5 V |
| Input Power (Pin) | 70 mW |
| Total Efficiency | 40 % |
| Gate Current | 1 mA (typ) |
| Module Size | 30 × 10 × 5.4 mm |
| Package Code | H46S |
All Mitsubishi RA07M4452M documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What torque is recommended for the mounting screws?
M2.6 screws should be tightened to a torque of 1.8 to 3.0 kgf‑cm.
How sensitive is the module to electrostatic discharge (ESD)?
The module is sensitive to ESD voltages down to 1000 V and requires appropriate ESD precautions.
What gate voltage provides nominal output power?
Nominal output power becomes available at a gate voltage of about 3 V (typical) to 3.5 V (maximum).
How is RoHS compliance indicated on this product?
A letter “G” after the lot marking indicates RoHS compliance.
