Mitsubishi Electric MGF1801B High‑Power GaAs FET Datasheet

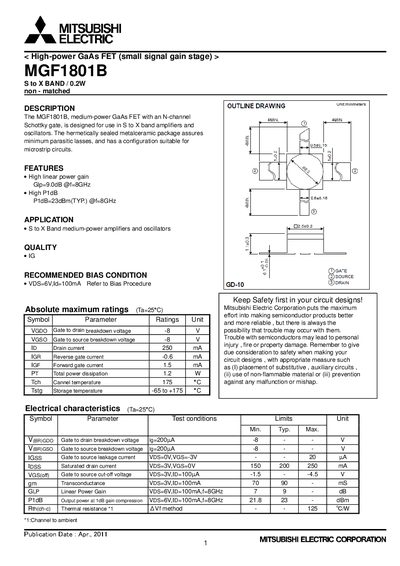

The MGF1801B is a medium‑power N‑channel GaAs FET designed for S‑ to X‑band amplifiers and oscillators. The hermetically sealed metal‑ceramic package provides low parasitic losses and is suitable for microstrip circuits.
The document lists electrical characteristics, absolute maximum ratings, typical performance curves and S‑parameter data, together with safety and bias recommendations for designers.
Mitsubishi MGF1801B specifications
| Gate to drain breakdown voltage (Vgdr) | -8 V |
|---|---|
| Gate to source breakdown voltage (Vgsr) | -8 V |
| Gate to source leakage current | 20 µA |
| Saturated drain current (IDss) | 250 mA |
| Gate to source cut‑off voltage (VGS(off)) | 15‑45 V |
| Linear Power Gain (GLP) at 8 GHz | 7‑9 dB |
| Output power at 1 dB gain compression (PidB) at 8 GHz | 21.8‑23 dBm |
| Thermal resistance (RθJC) | 125 °C/W |
