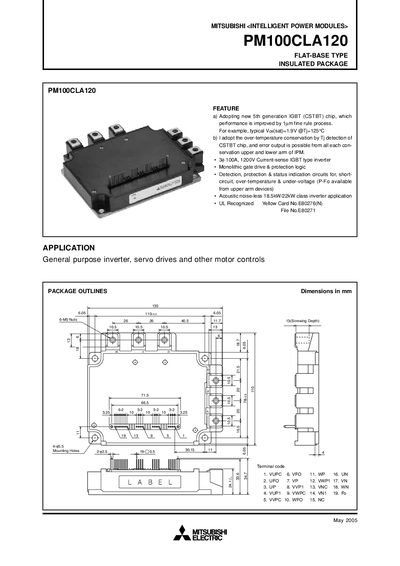

Mitsubishi Electric PM100CLA120 Intelligent Power Module User Manual
The PM100CLA120 is a flat‑base, insulated intelligent power module featuring a 5th‑generation IGBT (CSTBT) chip, 100 A continuous current and 1200 V rating for inverter and motor‑drive applications. It includes built‑in gate‑drive, protection and status circuits for short‑circuit, over‑temperature and under‑voltage detection.
The manual provides block diagrams, maximum electrical and mechanical ratings, testing precautions, performance curves and recommended wiring practices to ensure reliable and safe operation in industrial inverter systems.
Mitsubishi PM100CLA120 specifications
| Collector Current | 100 A |
|---|---|
| Junction Temperature Range | -20 ~ +150 °C |
| Weight | 800 g |
Source: Mitsubishi PM100CLA120 Intelligent Power Module Datasheet
All Mitsubishi PM100CLA120 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical saturation voltage at 125°C?
The typical saturation voltage is 1.9V when the collector current is 100A.
From: Mitsubishi PM100CLA120 Intelligent Power Module Datasheet
What are the recommended supply voltage limits?
The recommended supply voltage applied across P-N terminals should be less than 800V.
From: Mitsubishi PM100CLA120 Intelligent Power Module Datasheet
What is the typical collector‑emitter saturation voltage?
The typical VCE(sat) is 1.9 V measured at a junction temperature of 125 °C.
From: Mitsubishi Electric PM100CLA120 Intelligent Power Module User Manual
What is the maximum continuous collector current rating?
The module can continuously handle a collector current of 100 A.
From: Mitsubishi Electric PM100CLA120 Intelligent Power Module User Manual
