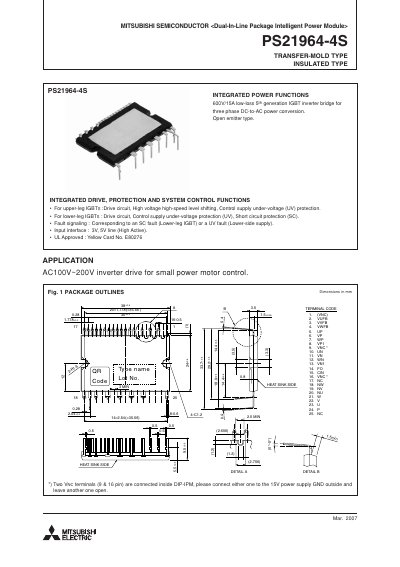

Mitsubishi PS21964-4S Intelligent Power Module Manual
This manual describes the Mitsubishi PS21964-4S Dual‑In‑Line Package Intelligent Power Module, a 600 V/15 A low‑loss IGBT inverter bridge for three‑phase DC‑to‑AC conversion. It details integrated drive, protection, and system control functions, including short‑circuit and under‑voltage protection, fault signaling, and input interfaces.
The document includes maximum electrical ratings, thermal and mechanical characteristics, recommended operating conditions, wiring diagrams, timing charts for protective functions, and guidelines for mounting, heat‑sink attachment, and external component selection to ensure reliable operation.
Mitsubishi PS21964 specifications
| Supply voltage (Veco) | 450 V |
|---|---|
| Collector‑emitter voltage (VCES) | 600 V |
| Continuous collector current | 15 A |
| Isolation voltage (pins to heat‑sink) | 1500 V |
Source: Mitsubishi Semiconductor PS21964-4/4A/4C/4W Datasheet
All Mitsubishi PS21964 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum supply voltage for the PS21964 IPM?
The maximum supply voltage (Veco) is 450 V applied between the P‑N terminals.
What mounting torque is recommended for the heat‑sink screws?
A mounting torque of 0.69 Nm (typical) is recommended, with a range of 0.59 Nm to 0.78 Nm.
What is the maximum collector‑emitter voltage rating of the PS21964-4S?
The PS21964-4S is rated for a collector‑emitter voltage of 600 V.
How should the shunt resistor be connected for the DIP‑IPM?
The shunt resistor’s GND wiring should be connected to the VNC terminal as close as possible; two VNC pins are internally linked, so connect one to the 15 V power‑supply GND and leave the other open.
What isolation voltage rating does the PS21964 provide between pins and the heat‑sink?
The isolation voltage rating is 1500 V.
What is the recommended mounting torque for the PS21964 module?
The recommended mounting torque is 0.69 Nm (typical).
