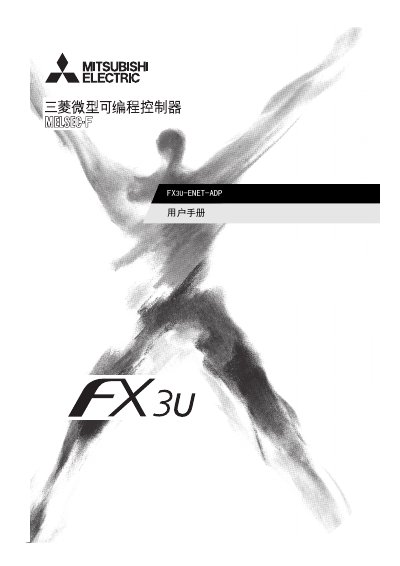

Mitsubishi FX3U-ENET-ADP Ethernet Adapter User Manual
The FX3U‑ENET‑ADP Ethernet adapter is a special communication module for Mitsubishi FX3U series programmable controllers. The manual begins with comprehensive safety precautions, emphasizing proper grounding, separation from high‑voltage lines, and the need to disconnect all power before installation or wiring work.
It then covers the product’s general, power, communication and performance specifications, system configuration, installation methods (including DIN‑rail mounting), wiring guidelines, and detailed functional descriptions such as MC‑protocol communication, Ethernet port settings, and diagnostic features. This manual is written in Chinese.
Mitsubishi FX3U specifications
| Input voltage | 100‑240 V AC |
|---|---|
| FX3U‑16M power consumption | 30 W |
| FX3U‑32M power consumption | 35 W |
| FX3U‑64M power consumption | 45 W |
| FX3U‑48M input points | 24 points |
Source: Mitsubishi FX3U Series Programmable Controller Hardware Manual
All Mitsubishi FX3U documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the input voltage requirements for the FX3U controller?
The controller operates on an AC input voltage range of 100 V to 240 V.
From: Mitsubishi FX3U Series Programmable Controller Hardware Manual
How many input points does the FX3U‑48M module provide?
The FX3U‑48M module provides 24 input points.
From: Mitsubishi FX3U Series Programmable Controller Hardware Manual
