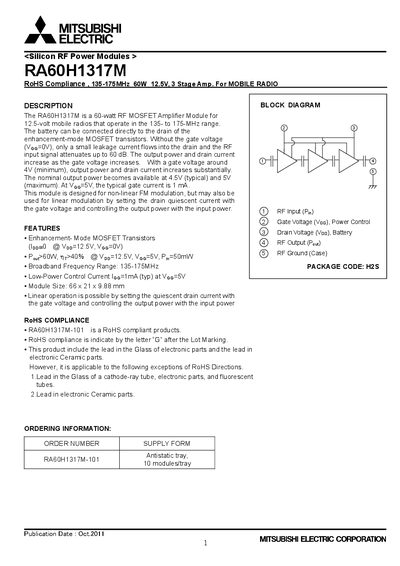

Mitsubishi Electric RA60H1317M RF Power Module Datasheet
The RA60H1317M is a 60‑watt RF MOSFET amplifier module designed for 12.5‑volt mobile radios operating in the 135‑175 MHz band. It can be used for non‑linear FM modulation or, with proper biasing, for linear AM modulation.
The document lists electrical ratings, typical performance curves, mechanical dimensions, mounting recommendations, and safety precautions such as ESD sensitivity and maximum case temperature limits.
Mitsubishi RA60H1317M specifications
| Frequency Range | 135 – 175 MHz |
|---|---|
| Output Power | 60 W |
| Total Efficiency | 40 % |
| Gate Current | 1 mA |
| Input Power (max) | 100 mW |
| Input VSWR (max) | 3:1 |
| Module Size | 66 × 21 × 9.88 mm |
| Operating Case Temperature Range | -30 °C to +110 °C |
| Storage Temperature Range | -40 °C to +110 °C |
| Mounting Screw Torque | 4.0 – 6.0 kgf·cm |
Source: Mitsubishi Electric RA60H1317M RF Power Module Datasheet
All Mitsubishi RA60H1317M documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended maximum case temperature for reliable operation?
The module case temperature should be kept below 90 °C (and below 60 °C under standard conditions).
From: Mitsubishi Electric RA60H1317M RF Power Module Datasheet
What ESD voltage can damage the module?
The MOSFET module is sensitive to ESD voltages down to 1000 V, so appropriate precautions are required.
From: Mitsubishi Electric RA60H1317M RF Power Module Datasheet
What gate voltage provides nominal output power?
Typical nominal output power is available at a gate voltage of about 4.5 V, with a maximum of 5 V.
From: Mitsubishi Electric RA60H1317M RF Power Module Datasheet
How is RoHS compliance indicated on this product?
RoHS compliance is indicated by the letter “G” after the lot marking.
From: Mitsubishi Electric RA60H1317M RF Power Module Datasheet
