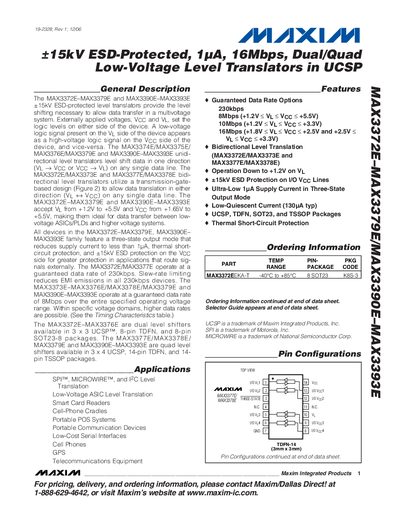

The MAX3372E–MAX3379E and MAX3390E–MAX3393E are bidirectional level translators that provide the necessary level shifting for data transfer in a multivoltage system. They are ideal for data transfer between low-voltage ASICs/PLDs and higher voltage systems, and feature a three-state output mode, thermal short-circuit protection, and ±15kV ESD protection.
The MAX3372E‑MAX3379E and MAX3390E‑MAX3393E families are +15 kV ESD‑protected low‑voltage level translators that shift data between multivoltage systems. They support bidirectional or unidirectional translation depending on the part, with VL input ranges from 1.2 V to 5.5 V and VCC ranges from 1.65 V to 5.5 V.
Key features include guaranteed data‑rate options from 230 kbps up to 16 Mbps, three‑state output with ultra‑low 1 pA quiescent current, thermal short‑circuit protection, and a variety of package options such as 3 × 3 UCSP, 8‑pin TDFN, 8‑pin SOT23‑8, 3 × 4 UCSP, 14‑pin TDFN, and 14‑pin TSSOP. Absolute maximum ratings, electrical characteristics, timing data, and package dimensions are provided in the following sections.
| Guaranteed Data Rate (MAX3372E/MAX3377E) | 230 kbps |
|---|---|
| Maximum Data Rate (MAX3373E‑MAX3379E / MAX3390E‑MAX3393E) | 8 Mbps |
| Maximum Data Rate (MAX3373E‑MAX3379E / MAX3390E‑MAX3393E) | 10 Mbps |
| Maximum Data Rate (MAX3373E‑MAX3379E / MAX3390E‑MAX3393E) | 16 Mbps |
| Supply Voltage Range (VL) | 1.2 V – 5.5 V |
| Supply Voltage Range (VCC) | 1.65 V – 5.5 V |
| Supply Current from VL (typical / max) | 16 µA / 100 µA |
| ESD Protection (Human Body Model) | +15 kV |
| Operating Temperature Range | -40 °C – +85 °C |
| Package Options (dual level shifters) | 3 × 3 UCSP, 8‑pin TDFN, 8‑pin SOT23‑8 |
| Package Options (quad level shifters) | 3 × 4 UCSP, 14‑pin TDFN, 14‑pin TSSOP |
The MAX3372E and MAX3377E operate at a guaranteed data rate of 230 kbps.
The devices provide +15 kV ESD protection on the VCC side (Human Body Model).
VL can be supplied from 1.2 V to 5.5 V, while VCC can be supplied from 1.65 V to 5.5 V.
Dual level shifters are offered in 3 × 3 UCSP, 8‑pin TDFN, and 8‑pin SOT23‑8 packages.
