Start here

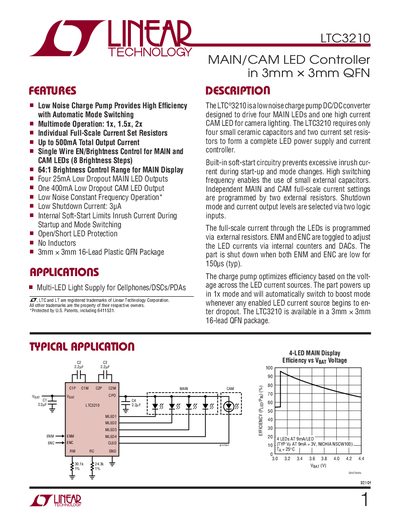

Linear Technology LTC3210 MAIN/CAM LED Controller 3mm × 3mm QFN Datasheet
The LTC3210 is a charge‑pump DC/DC converter designed to supply up to 500 mA total LED current for four MAIN LEDs and one high‑current CAM LED used in cell‑phone, DSC and PDA lighting. It features multimode operation (1×, 1.5×, 2×), single‑wire EN/Brightness control, 64:1 brightness range for the MAIN display, and internal soft‑start to limit inrush current.
Electrical characteristics include a 2.9 V‑5 V operating voltage range, 0.8 MHz oscillator frequency, 0.4 ms mode‑switching delay, and a shutdown current of 3 pA when ENM and ENC are low. The device is supplied in a 3 mm × 3 mm 16‑lead plastic QFN package with an exposed pad tied to ground for optimal thermal performance. Pin functions, block diagram, and typical application circuits are detailed for easy integration.
Linear Technology LTC3210 specifications
| Total Output Current | Up to 500 mA |
|---|---|
| Package | 3 mm × 3 mm 16‑lead plastic QFN |
| Operating Voltage | 2.9 V – 5 V |
| Shutdown Current (ENM=ENC=LOW) | 3 pA |
| Oscillator Frequency | 0.8 MHz |
| Mode Switching Delay | 0.4 ms |
Source: Linear Technology LTC3210 MAIN/CAM LED Controller 3mm × 3mm QFN Datasheet
All Linear Technology LTC3210 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many LEDs can the LTC3210 drive?
It can drive four MAIN LEDs and one CAM LED.
From: Linear Technology LTC3210 MAIN/CAM LED Controller 3mm × 3mm QFN Datasheet
What is the maximum total LED current?
The device provides up to 500 mA total output current.
From: Linear Technology LTC3210 MAIN/CAM LED Controller 3mm × 3mm QFN Datasheet
What is the maximum total output current of the LTC3210‑2/LTC3210‑3?
The device can deliver up to 500 mA total output current.
How many MAIN LED outputs does the LTC3210‑2 provide?
It provides three or four 25 mA low‑dropout MAIN LED outputs.
