D-Link DI-704 is a powerful broadband router that provides broadband network access and office resource sharing for multiple computers. It has broadband modem and network address sharing, automatic detection Ethernet switch, support for virtual private network, firewall, support for dynamic host configuration protocol (DHCP) server, browser configuration settings, support for access control, support for virtual server, user-defined application detection channel, support for demilitarized zone (DMZ) host, etc.

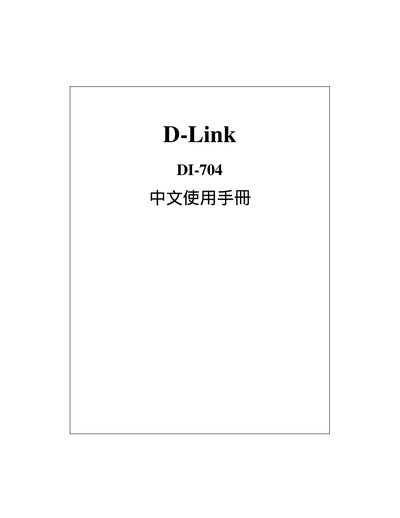

This manual introduces the DI-704 broadband router, describing its features such as a built‑in 4‑port 10/100 auto‑sensing Ethernet switch, VPN support, DHCP server, and access control. It guides users through hardware installation, panel settings, and power connection.
The guide also covers network configuration steps, including default IP settings (192.168.123.254), TCP/IP setup on Windows, and troubleshooting with ping commands. Appendices provide console mode details, Windows 95/98 TCP/IP configuration, and a full list of technical specifications. This manual is written in Chinese.
| Number of Ethernet ports | 4 ports, 10/100 Mbps auto‑sensing |
|---|---|
| Default IP address | 192.168.123.254 |
The DI-704 has four 10/100 Mbps auto‑sensing Ethernet ports.
The default IP address is 192.168.123.254.
Press the RESET button on the front panel to restore all settings to factory defaults.
