Start here

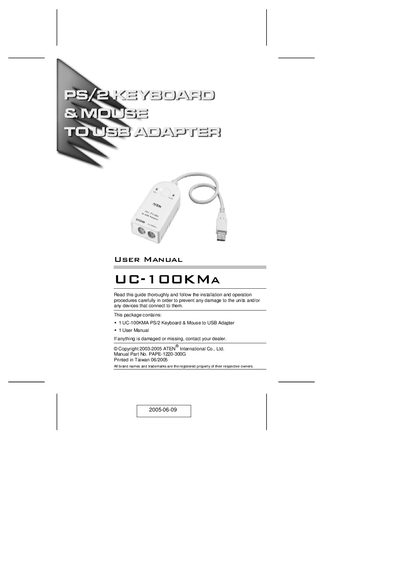

ATEN UC-100KM A User Manual
The UC-100KM A is a PS/2‑to‑USB converter that lets you connect a PS/2 keyboard and mouse to a USB‑enabled computer, notebook, or handheld device. It draws power directly from the USB port, so no external power supply is required.
The manual covers features such as hotkey OS selection, supported operating systems, installation steps, connector details, and warranty information. It also includes a hotkey summary table and mapping for Mac keyboards.
ATEN UC-100KMA specifications
| Connectors | USB 1 Type A Plug, PS/2 Keyboard, PS/2 Mouse |
|---|---|
| Cable Length | 30 cm |
| Transfer Rate | 12 Mbps |
| USB Specification | USB 1.1 compatible |
| Power Mode | Bus powered |
| Power Consumption | 500 mW |
| Operating Temperature | 0 – 50 °C |
| Storage Temperature | -20 – 60 °C |
| Humidity | 0 % – 80 % RH (non‑condensing) |
| Weight | 80 g |
| Dimensions | 8.2 × 5.5 × 2.3 mm |
Source: ATEN UC-100KM A User Manual
All ATEN UC-100KMA documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I install the UC-100KM A adapter?
Plug the PS/2 mouse and keyboard into the appropriate connectors on the UC-100KM A adapter, then connect the USB plug to a computer USB port or hub and power on the computer.
How do I change the keyboard layout using hotkeys?
Press and hold the Ctrl key, press and release F12, then press the specific hotkey combination (e.g., Ctrl + F12, 3, 3 for American English layout).
Which operating systems are supported by the UC‑100KMA?
Supported OSes include Windows 98/98SE/2000/Me/XP, Apple G3/G4/iMac OS 8.6 or later, Sun Blade Servers 2000/100 (Solaris 8), and Linux.
From: ATEN UC-100KMA USB Keyboard and Mouse Adapter User Manual
