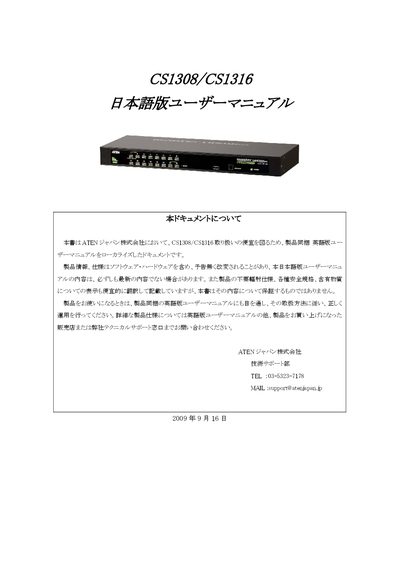

ATEN CS1308/CS1316 User Manual
The document explains how to install and configure the ATEN CS1308/CS1316 KVM switches, including hardware setup, front‑ and rear‑panel descriptions, connection diagrams, and basic operation such as port ID assignment and hot‑key functions.
It also contains the product warranty policy, support contact information, and instructions for restoring factory defaults and the default OSD settings. The manual notes that the English version is the authoritative source and that specifications may change without notice. This manual is written in Japanese.
ATEN CS1308 / CS1316 specifications
| Maximum direct computer connections | 8 (CS1308) / 16 (CS1316) |
|---|---|
| Power consumption | 5 W (CS1308) / 6.6 W (CS1316) |
| Dimensions (L×W×H) | 43.3 mm × 160.0 mm × 44.0 mm |
| Weight | 1.89 kg (CS1308) / 2.10 kg (CS1316) |
| Operating temperature range | 0 °C – 50 °C |
All ATEN CS1308 / CS1316 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many computers can the CS1308/CS1316 connect?
The CS1308 can connect up to 8 computers directly, while the CS1316 can connect up to 16; both models can be expanded by stacking.
What is included in the package?
The package contains one CS1308/CS1316 KVM switch with rack‑mount kit, a control‑end cable, a firmware‑update cable, a set of four foot pads, an AC power adapter, and the user manual.
What is included in the CS1308 / CS1316 package?
The package contains the KVM switch with rack‑mount kit, a console cable, a firmware upgrade cable, a foot‑pad set, a power adapter, and the user instructions.
How many computer connections does the CS1308 support?
The CS1308 supports 8 direct computer connections, up to 64 via cascade, and up to 256 via double cascade.
How can I restore the factory default settings?
Remove power, open the case, place a jumper on pins 1‑2 of J17, power on the unit, then follow the on‑screen prompts to clear the settings and restart.
What is the default OSD hotkey?
The default OSD hotkey is the Scroll Lock key.
