Key facts
- Brand
- ATEN
- Model
- PN7212 / PN7320
- Category
- Power Management
- Industry
- Industrial
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2026-10-06
Start here

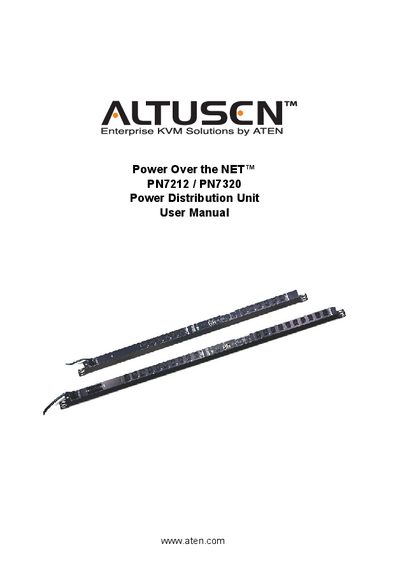

ATEN PN7212 / PN7320 Power Distribution Unit User Manual
This manual provides step‑by‑step instructions for installing, configuring, and operating the ATEN PN7212 and PN7320 Power Distribution Units. It includes safety notices, hardware setup, network configuration, and management of users, groups, and outlets.
The document also covers advanced features such as remote access, log server installation, firmware upgrades, and troubleshooting. Appendices contain specifications, sensor data, and warranty information.
ATEN PN7212 / PN7320 specifications
| Direct Power Outlets | PN7212: 12, PN7320: 20 |
|---|---|
| Total Input Rating | PN7212: 100‑120 V / 16 A, PN7320: 100‑120 V / 24 A |
| Load Capacity | PN7212: 1920 W, PN7320: 2880 W |
| Operating Temperature | 0 °C – 50 °C |
| Weight | PN7212: 4.49 kg, PN7320: 5.68 kg |
Source: ATEN PN7212 / PN7320 Power Distribution Unit User Manual
All ATEN PN7212 / PN7320 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many direct power outlets does the PN7320 provide?
The PN7320 provides 20 direct power outlets.
From: ATEN PN7212 / PN7320 Power Distribution Unit User Manual
What input voltage and current rating should be used for the PN7212?
Use a 100‑120 V, 50/60 Hz supply rated for 16 A.
From: ATEN PN7212 / PN7320 Power Distribution Unit User Manual
How many power outlets does the PN7212 support?
The PN7212 can support up to 192 direct outlets when daisy‑chained.
From: ATEN PN7212 / PN7320 Power Over the NET PDU User Manual
What is the input voltage range for the PN7212?
The PN7212 accepts an input of 100‑120 V, 50/60 Hz, up to 16 A (UL rating).
From: ATEN PN7212 / PN7320 Power Over the NET PDU User Manual
