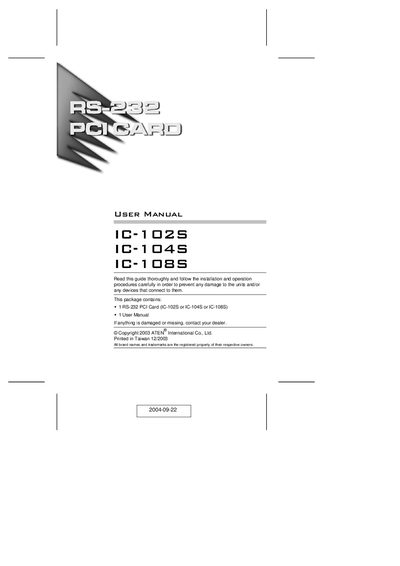

ATEN IC-102S / IC-104S / IC-108S RS-232 PCI Card User Manual
This manual covers the ATEN IC-102S, IC-104S, and IC-108S RS-232 PCI cards. It includes an overview of each card, hardware installation procedures, pin assignments, technical specifications, packing checklists, and warranty information.
Installation instructions guide you to power off the computer, insert the card into a PCI slot, connect peripherals via DB9 connectors, and power the system back on. The document also lists supported operating systems and provides troubleshooting tips for common issues such as boot‑up errors.
ATEN IC-104S specifications
| Function Type | Serial Communication |
|---|---|
| Bus Interface | 64‑bit & 32‑bit PCI, 3.3 V & 5 V |
| FIFO | 32 byte hardware FIFO, 128 KB software FIFO |
| Baud Rate | 75 bps – 921.6 Kbps |
| Data Bits | 4, 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, None, Mark, Space |
| Flow Control | None, Xon/Xoff, Hardware (RTS/CTS) |
| Connector | Four RJ‑45 ports to DB9M or DB25M |
Source: ATEN IC104SA PCI 32‑Bit RS‑232 Multi‑Port Adapter User Manual
All ATEN IC-104S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I install the ATEN IC104SA card?
Turn the computer off, remove the power plug, open the case, insert the card into a free PCI slot, secure it, replace the cover and power the PC back on.
From: ATEN IC104SA PCI 32‑Bit RS‑232 Multi‑Port Adapter User Manual
What baud rates does the IC104SA support?
The adapter supports serial communication speeds from 75 bps up to 921.6 Kbps.
From: ATEN IC104SA PCI 32‑Bit RS‑232 Multi‑Port Adapter User Manual
How do I install the ATEN PCI card?
Power off the computer, plug the card into an available PCI slot, connect peripherals to the DB9 ports, then power the computer back on.
From: ATEN IC-102S / IC-104S / IC-108S RS-232 PCI Card User Manual
What is the maximum data transfer speed of the cards?
Each port can operate at speeds up to 921 KB per second.
From: ATEN IC-102S / IC-104S / IC-108S RS-232 PCI Card User Manual
